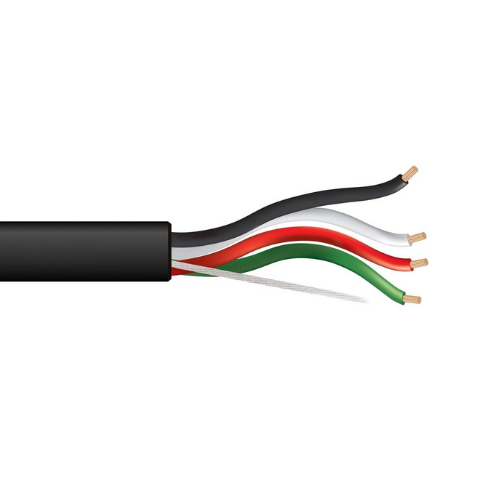

14 AWG 4C Mini Split Copper Tray Cable PVC Jacket 600V

14 AWG 4C Mini Split Copper Tray Cable PVC Jacket 600V

Application:

• Mini Split Tray Cables deliver versatility to accommodate indoor and outdoor installations with or without conduit. Their direct burial and sunlight resistant features enable them to withstand harsh and wet environments.

• Installed in-wall without conduit in one- and two-family dwelling (2017 NEC and later units).

Also Known As:

Mini Split Copper Tray Cable, 4-Conductor (4C) Copper Tray Cable, HVAC Copper Power Cable, 600V PVC Jacket Copper Cable, Mini Split HVAC Power Cable, Mini Split Power, 4-Conductor Copper Tray Cable for HVAC Cable, 600V PVC Insulated Copper Cable, Mini Split Copper Wiring Cable, HVAC Copper Conductor Cable.

Standards:

• UL 1277 – Electrical Power and Control Tray Cables
• Direct Burial Rated
• Sunlight Resistant Rated
• REACH/RoHS Compliant
• Rated for 600 Volts
• Rated for -20°C to 90°C Dry/75°C Wet

Construction:

• Conductor:  Bare Copper conductors for excellent conductivity and low voltage drop.
• Insulation: THHN
• Jacket: PVC

Specifications:

• Size: 14 AWG
• Number of Conductors: 4
• Number of Strands: 7
• Insulation Thickness (in): 0.015
• Jacket Thickness (in): 0.047
• Nominal Diameter (in): 0.363
• DC Resistance m(Ohms/1000ft at 20°C): 2.62
• Weight (lbs/1000ft): 94
