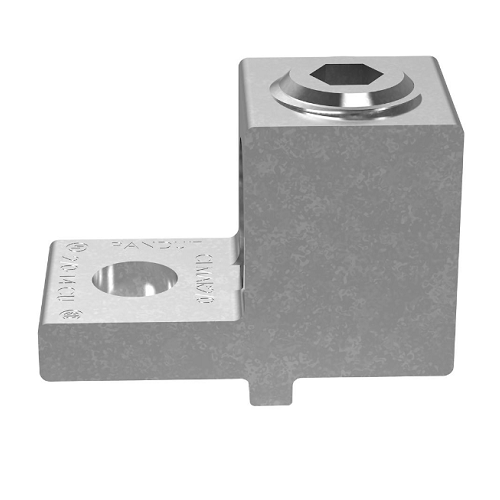

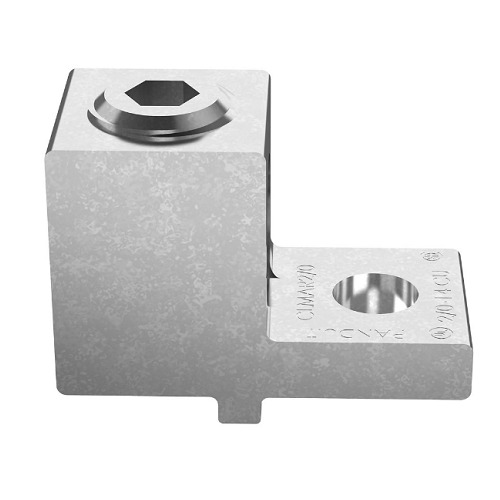

14-2/0 AWG Copper Mechanical Lug Anti-Rotational Tin-Plated CLMAR2/0-14-Q (Pack of 25)

The product you mentioned, "Pan-Lug CLMAR2/0-14-Q Mech. Lug, Anti-Rotational, Tin Plt Copper," is a mechanical lug designed for electrical connections. It is also known as a "Mechanical Lug with Anti-Rotation Feature," and it is made of tinned plated copper. This type of lug is commonly used in electrical and industrial applications to create secure and reliable connections between electrical conductors. The "CLMAR2/0-14-Q" designation likely specifies the lug's size and specifications.

About:

• Mechanical Lug: It is a connector used for joining electrical conductors, which doesn't rely on soldering or welding, but instead uses a mechanical fastening method.

• Anti-Rotational: This lug is designed to prevent the connected wires from rotating or coming loose, ensuring a stable and secure connection over time.

• Tin Plated Copper: The lug is constructed from copper that has been plated with tin, which offers excellent electrical conductivity, corrosion resistance, and durability.

• Size Specification: The "CLMAR2/0-14-Q" designation likely specifies the lug's size and specifications. It's essential to ensure that it matches the requirements of the specific electrical application.

Specification:

Common Applications:

• Power Distribution: These lugs are frequently used in power distribution systems to connect cables to transformers, circuit breakers, and busbars. The anti-rotational feature ensures secure connections even under heavy loads.

• Renewable Energy: In solar and wind energy installations, these lugs are employed to connect the conductors from solar panels or wind turbines to inverters and battery banks, maintaining a reliable electrical connection.

• Industrial Machinery: They are used in industrial equipment and machinery to establish stable connections between electrical components, ensuring the safe and uninterrupted operation of the machinery.

• Electrical Panels: These lugs are often found in electrical control panels, ensuring secure terminations for the wiring within the panel, preventing any rotation or loosening of wires over time.

• Construction and Building Wiring: In large-scale construction projects, such as commercial and industrial buildings, these lugs are used to connect power cables and grounding conductors to various electrical components, ensuring safety and reliability.

• Data Centers: Data centers rely on secure electrical connections to maintain constant power supply to servers and networking equipment, and these lugs play a crucial role in ensuring uninterrupted operations.

Features:

• Multiple mounting options: In addition to surface mounting, two mounting stand-off options are available, one that bonds to the mounting surface and one that isolates from the mounting surface; both options provide additional finger wiring space in tight places

• Unique geometry: The unique shape of the universal ground bar allows more surface contact between the wire connectors and the ground bar

• Flexible design: Works with all types of wire termination methods including stripped wire, ferrules, terminals, and compression or mechanical connectors; compatible with over 140 Panduit connectors

Standards Met:

UL/CSA - UL (Underwriters Laboratories) Standard: This ensures that the lug complies with safety and performance standards as required for electrical components.

Construction:

• Tin-Plated Copper: The lug is made from high-quality copper, providing excellent electrical conductivity, while the tin plating adds corrosion resistance, making it suitable for a variety of environments.

• Anti-Rotational Design: This lug is engineered with a specific anti-rotational feature, typically in the form of unique grooves or mechanisms, ensuring that connected wires remain securely in place, preventing any unintended loosening or rotation.

• Secure Fastening: The lug is equipped with a reliable fastening mechanism, such as bolts or screws, which ensures a tight and secure connection with the electrical conductors.

• Durable and Resilient: The materials and design of the lug make it resistant to wear and tear, ensuring its longevity and performance under varying conditions, including heat, moisture, and mechanical stress.

• Versatile Sizing: The product's designation, "CLMAR2/0-14-Q," indicates its size and compatibility with specific conductor sizes, making it versatile for various applications.
