14-16 AWG 0.25 Tab PK20 Disconnects Blue Nylon DNF14250FIMX-2K (Pack of 2000)

Product Information

Specification

Specifications:

DESCRIPTION :

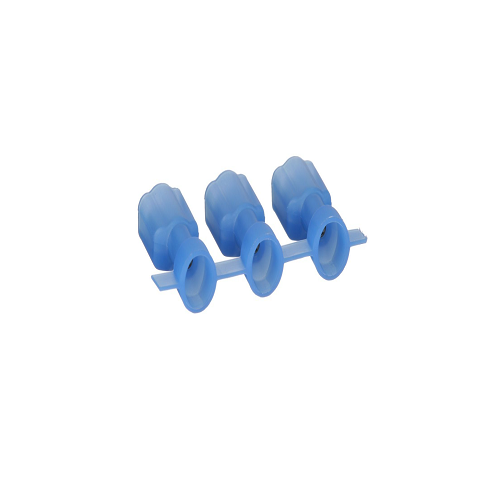

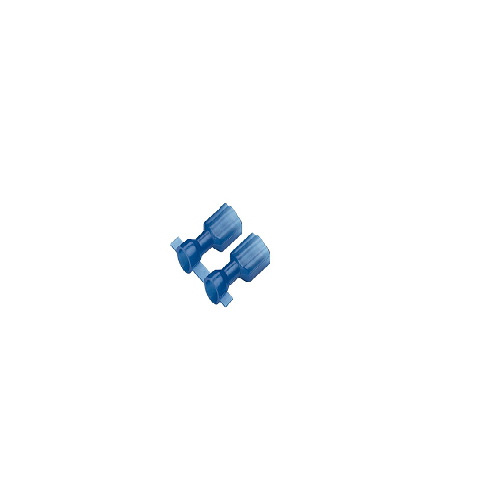

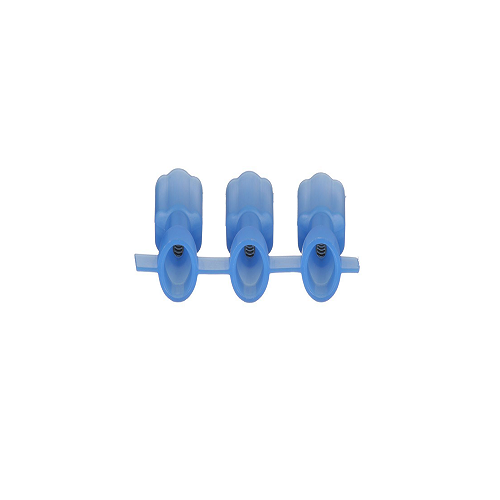

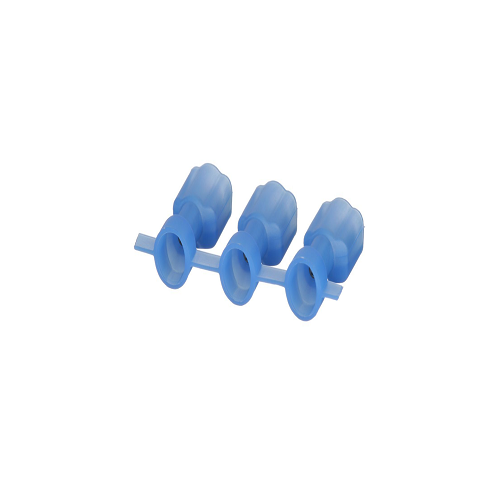

The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a blue, nylon standard housing and has an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.97" (24.6 mm) long and 0.41" (10.4 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel.

FEATURES :

⦿ Male tab couples with (all 0.250 x 0.032) female disconnects

⦿ Expanded wire entry designed to accommodate wire with a larger insulation thickness

⦿ Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time

⦿ Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost

⦿ Fully insulated design provides protection from electrical shorts

⦿ UL and CSA rated up to 600 V per UL 310, where applicabe

⦿ Internal barrel serrations assure good wire contact and maximum tensile strength

⦿ UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
