14-16 AWG 0.25" Tab Disco-Grip Disconnect Nylon DPF14-250FIB-C (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specifications:
| Disconnect Type | Female Disconnect |
| Insulation Material | Premium Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Disco-Grip |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV) | 0.6 |
| Part No | DPF14-250FIB-C |
DESCRIPTION :

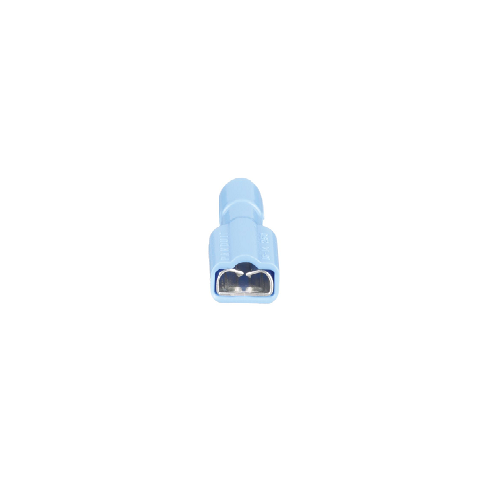

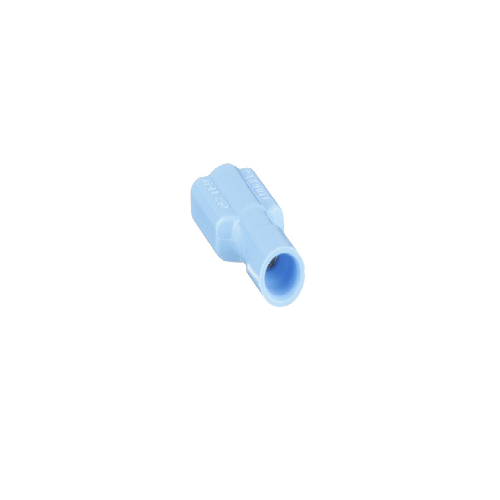

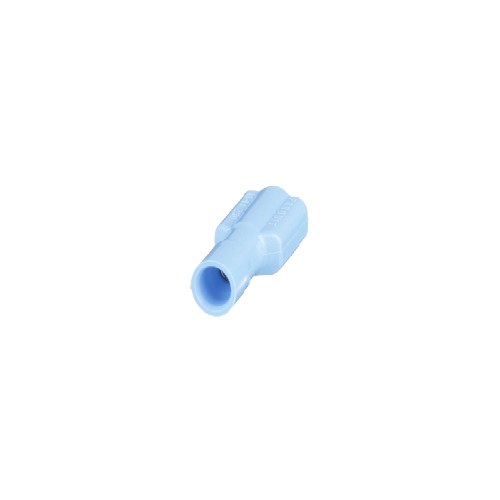

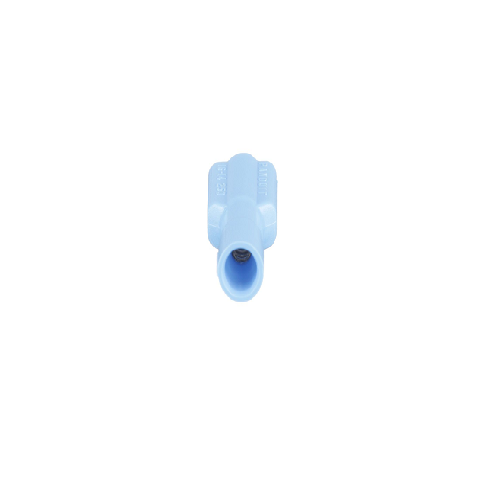

The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel.
FEATURES :
⦾ Fully insulated design provides protection from electrical shorts
⦾ Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
⦾ Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
⦾ UL and CSA rated up to 600 V per UL 310, where applicable
⦾ Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
⦾ UL Flammability UL 94V-2, maximum insulation temperature 221°F (105°C)
