Product Information
Specification
| Type | SC and APC Adapter |
| UPC | 810053352113 |
| Wavelengths | 1310±20nm, 1550±20nm |
| Fiber Type | G.652 Single Mode Fiber |
| Dynamic Range | 32 dB/30 dB |
| Event Blind Zone | 0.5 m |
| ATT Blind Zone | 0.5 m |
| Test Range | 500m-80km |
| Range Accuracy | ±（0.75 m + Sampling Interval + 0.0025％× Test Distance） |
| Loss Accuracy | ± 0.02 dB/km |
| Data Storage | Internal: 200 MB; External: MicroSD Card |
| Included Connectors for OTDR | FC, SC (APC) |
| Laser Safety Level | Class II level |
| Dimensions | 13 in x 4 in x 9 in (33.02 cm x 10.16 cm x 22.86 cm) |
| Part Number | OTDR-1500 |

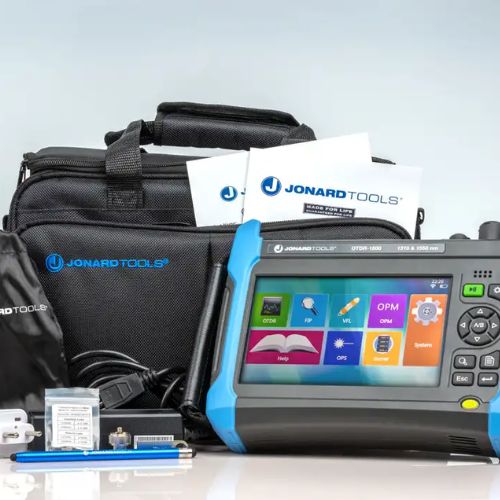

1310 and 1550 nm Professional Multi-Function OTDR
Description:
This advanced OTDR unit offers powerful functionality and rugged design for efficient and accurate fiber optic testing in the field.
Features:

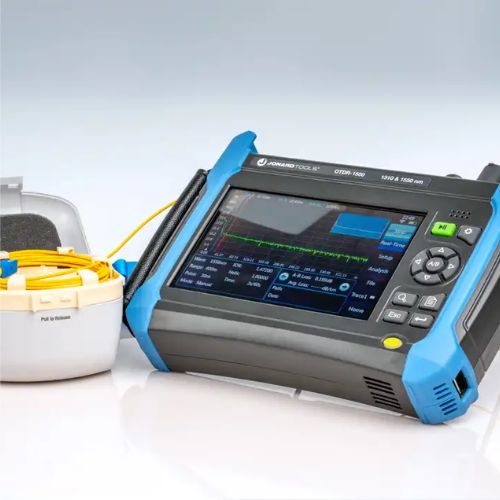

• Built-in Event Map displays faults as easy-to-understand graphical images for faster, simplified troubleshooting

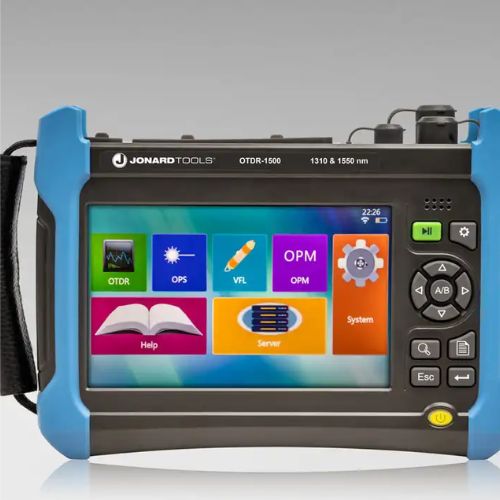

• Large 7” color LCD touchscreen provides a bright, intuitive interface for evaluating data quickly and easily

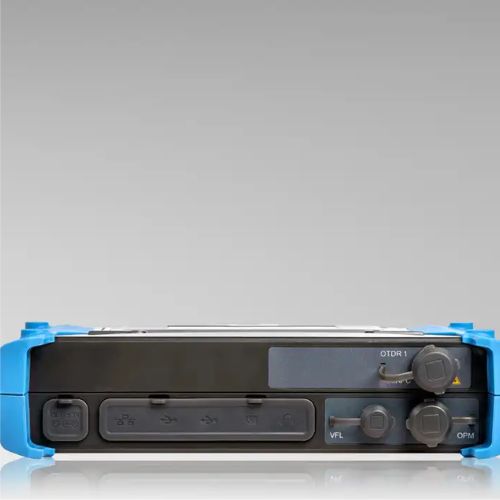

• Includes 5 essential test functions:
• 1310/1550 nm OTDR module
• 1310/1550 nm Light Source module
• Power Meter module
• Visual Fault Locator (VFL) module
• Help/Support module
• Dual Wavelength Testing allows simultaneous viewing of 1310 nm and 1550 nm data
• 32/30 dB Dynamic Range ensures more accurate and reliable test results
• 200 MB of internal storage (up to 4,800 test records), with MicroSD/TF card slot for expandable memory
• Built-in rechargeable lithium-ion battery for portable, all-day use
• Wi-Fi connectivity enables wireless data transfer or live data viewing on Android devices

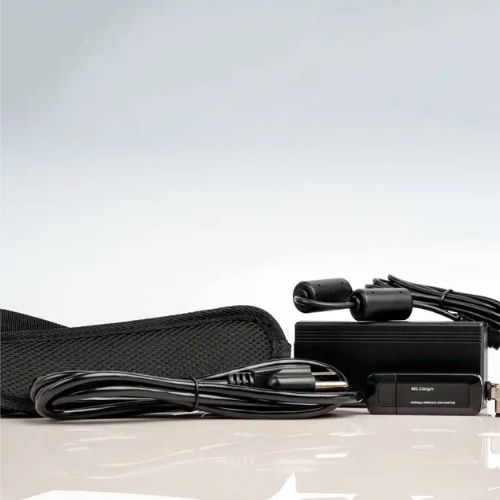

• Micro-USB port for charging or transferring data to a computer (cable included)
• Rugged construction: Rubberized hard plastic case is both shock-proof and drop-proof

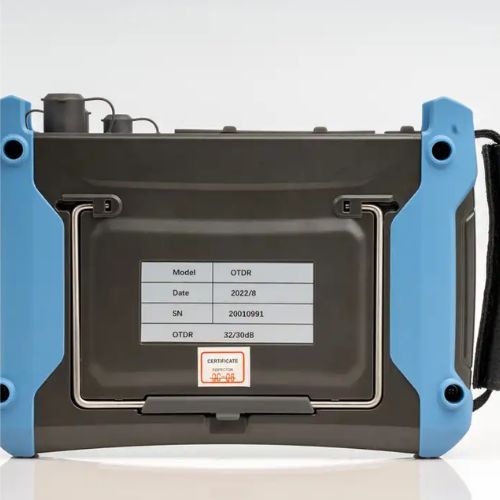

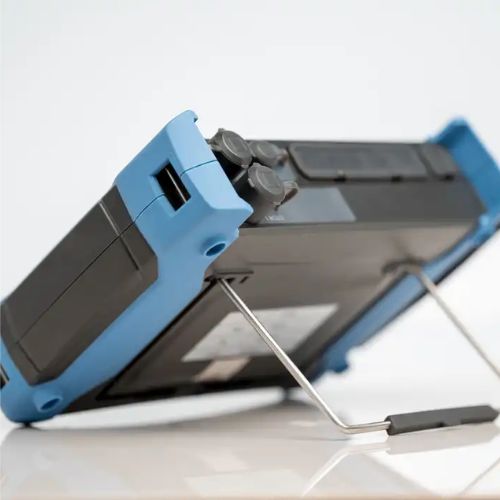

• Convenient built-in kickstand for hands-free operation
• Stylus included to keep the screen clean and fingerprint-free
