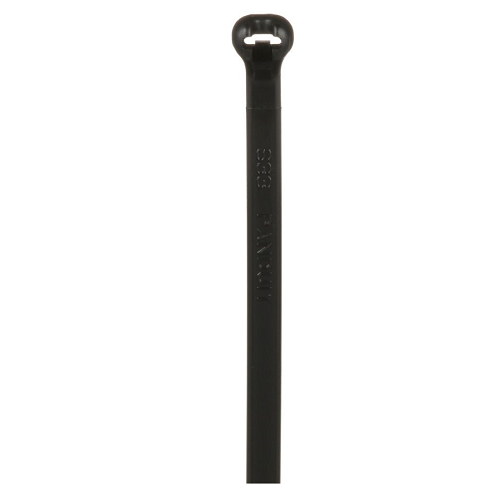

12x0.185 Dome-Top Stainless-Steel Locking Barb Cable Tie Heat Stabilized Nylon 6.6 BT3S-M30 (Pack of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 12 |
| Overall Length (mm) | 305 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Military Cross Reference Number | MS3367-7-11 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Part No: |
BT3S-M30 |
Dome-Top Barb Ty Cable Ties – Nylon 6.6• For indoor use
• High strength and low thread force
• Stainless steel locking barb provides consistent performance,reliability, and infinite adjustability through entire bundle range

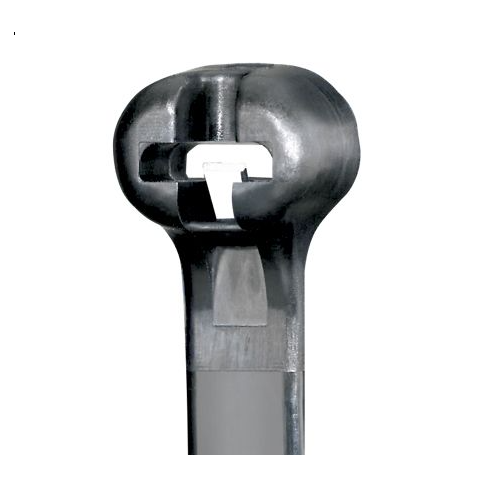

• Dome-top head features unique patented design with round smooth edges
• UL Listed for use in plenum or air handling spaces per NEC
• A variety of materials and colors are available forspecific applications
• Curved tip is easy to pick up from flat surfaces and allows fasterinitial threading to speed installation
Download PDF Spec Sheet
