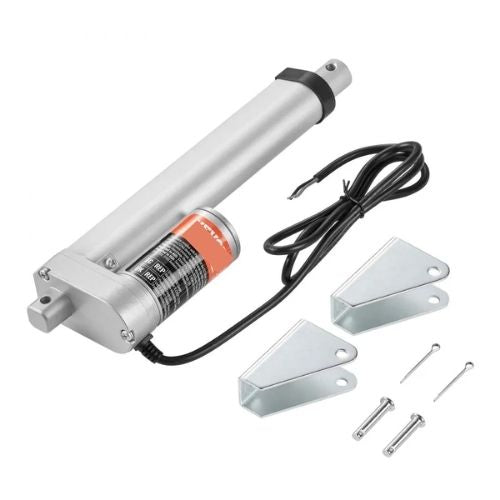

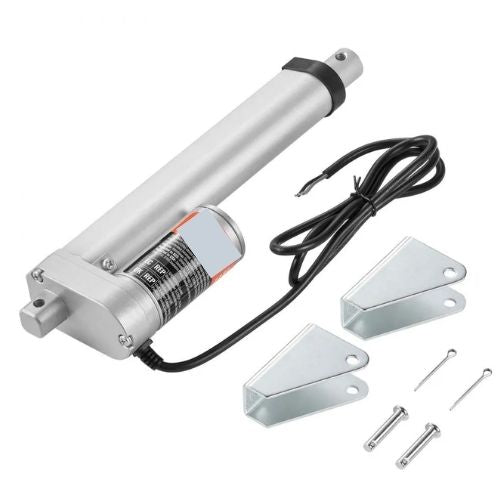

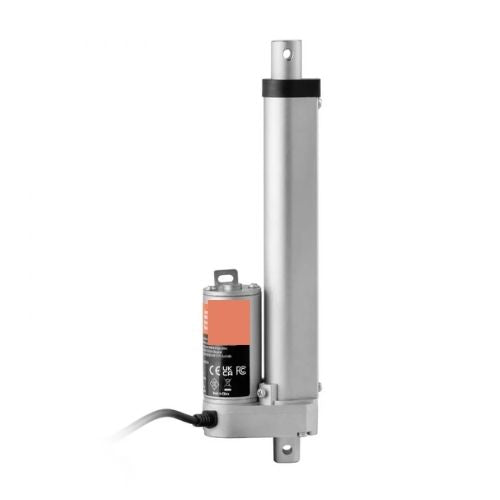

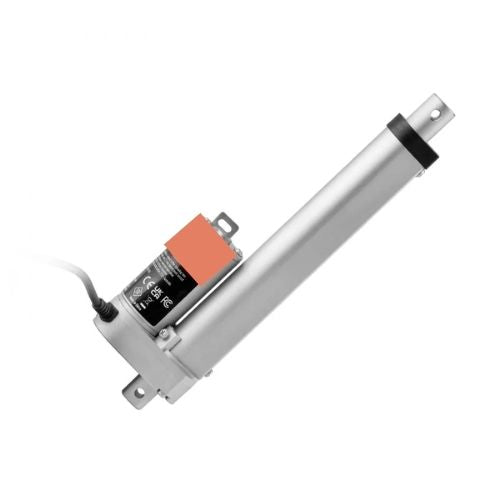

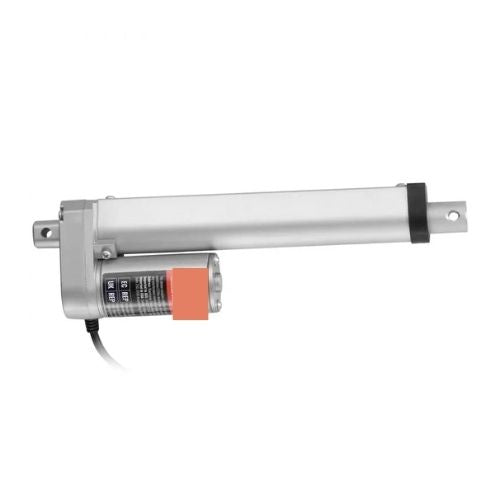

12V Linear Actuator 6-Inch 220 LBS (1000N) 0.55 in/s IP54 Mounting Bracket

Product Information

Specification

12V Linear Actuator 6-Inch 220 LBS (1000N) 0.55 in/s IP54 Mounting Bracket

Description

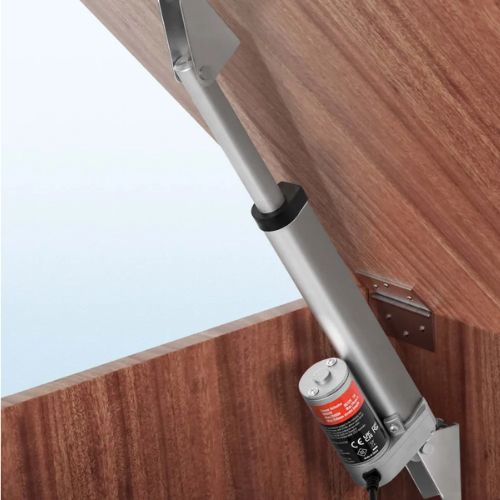

Seamlessly integrating into your living spaces, our linear motion actuator not only facilitates automatic raising and lowering of curtains and height adjustment systems but also drives electric door systems. It delivers more convenient, comfortable, and intelligent living experiences.

Features

⦿  Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.

⦿  Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.

⦿  Versatility Unleashed: 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

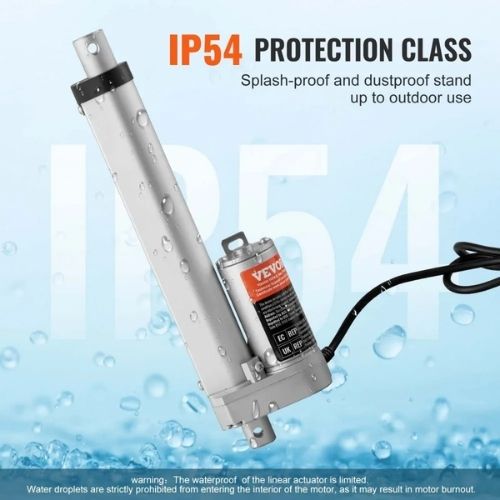

⦿  IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

⦿  Key Specifications: Stroke Length: 6 inch (150mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 10.82" (275mm); Extended Length: 16.82" (425mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.
