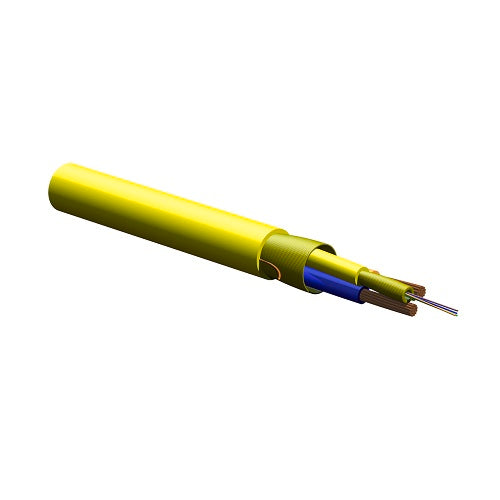

12AWG ActiFi Composite Cable 4 F Loose Tube 2 Conductor Indoor Plenum 004ZD8-21W01M20

Product Information

Specification

About :

Cornings ActiFi Composite Cables provide the ultimate solution for indoor remote powering of distributed antenna systems, optical networks, small cells and more. The design uses fiber and linear laid copper conductors rated at 300 VAC. These cables are suitable for use with Digital Electricity and +/-190VDC installations in accordance with NEC Article 830.15. They may also be used with low-voltage installations in accordance with NEC Article 725.ActiFi Composite cables also provide a time and cost saving solution for installations requiring remotely powered equipment. By integrating linear laid copper and loose tube fiber in one cable, ActiFi Composite cables eliminate the need to install separate power and fiber cables. This saves installation time, labor costs and duct or tray space. The compact and versatile design is available with an interlocking armor option for additional protection where conduit may not be feasible.

Specifications :

Product Number : 004ZD8-21W01M20
Environment : Indoor
Cable Type : Loose Tube
Fiber Category : SMF-28 Ultra fiber
Flame Rating : Plenum CL3P
Application : Plenum
Fiber Count : 4
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Central Element : Yarn
Fiber Count : 4
Number of Ripcords : 1
Outer Jacket Color : Yellow
Outer Jacket Material : Flame-retardant
Buffer Tube Color : Yellow
Buffer Tube Diameter : 3 mm (0.12 in)
Conductor : 12 AWG
Number of Active Tubes : 1
Number of Conductors : 2
Number of Tube Positions : 1
Fiber Coloring : Blue, Orange, Green, Brown
Fibers per Tube : 4
Color Code Standards : Telcordia
Fiber Code : Z
Fiber Name : SMF-28 Ultra fiber
Fiber Type : Single-mode
Performance Option Code : 01
Maximum Attenuation : 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D/G.657.A1

Features :

• <50 pF/ft

• PVC insulation, thickness varies depending on AWG size

• Easily accessible for termination
