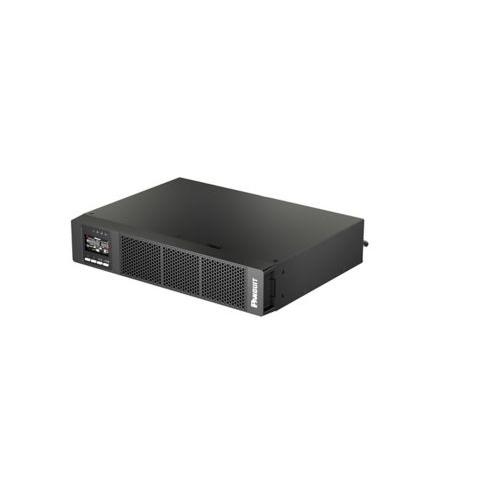

120V Smartzone UPS Valve Regulated Lead Acid U01S13V

Product Information

Specification

About:

• Smartzone UPS, 1kVA, 2U, 120V, VRLA, Single Phase, 24VDC, Double-Conversion On-Line Power Protection
• A 120V SmartZone UPS with a 1kVA capacity, Valve Regulated Lead Acid (VRLA) battery, and a network card typically refers to an uninterruptible power supply system designed to provide reliable backup power and remote management capabilities
• Designed to prevent leakage and have built-in safety features to handle overloads and surges.
• Ensures continuous operation of connected devices during power outages.
• VRLA batteries are sealed and require minimal maintenance.

Also Known As:

Smartzone UPS, Battery Backup, Power Conditioning, Management Software, UPS, Uninterruptible Power Supply, Smartzone UPS Valve Regulated Lead Acid, VRLA Smartzone UPS.

Specification:

• Product Type: UPS
• Output Capacity (kVA): 1
• UPS Topology: Double Conversion
• Form Factor: 2U
• Battery Type: VRLA
• Input Plug: NEMA 5-15P
• Output Power Factor:  1
• Nominal Input Voltage (V): 110/120
• Input Output Phase: 1:1
• Nominal Output Voltage (V): 110/120
• Output Receptacles: (6)5-15R
• UPC: 613056833982

Features:

• Energy savings-High Efficiency on Smart ECO mode for Online Double Conversion models
• Output unity power factor-Means more active power for IT equipment load
• Input power factor-Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
• Expandable battery packs-Allows to connect maximum four external battery packs, extending the UPS backup running time
• Intelligent Battery Management-The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
• EPO function (Emergency Power Off)-Allows to quickly and easy shut down the UPS when emergency event occurs
• Generator compatible-Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
• Hot-Swappable battery design-Can perform the replacement of battery cartridge without powering down the UPS
• Cold start function-Allows to boot up the UPS without mains input but with batteries
• Intelligent fan speed regulation-Automatically adjustment of fan speed due to the ambient temperature and load percentage
• Programmable outlet group with Smart Load Shedding-Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load, Smart Load Shed allows logical group shutdown with time or load
• Segment colorful LCD-Colorful LCD with four buttons and LED indicators, providing intuitive display
