General properties

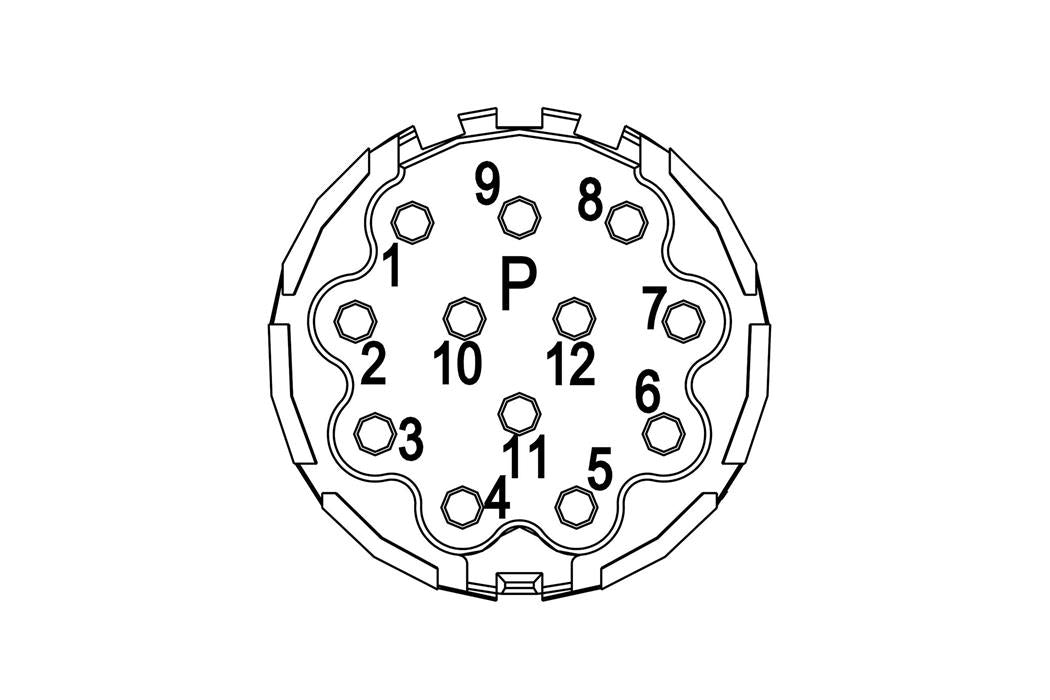

Insulation insert & number of poles
P-Type 12-pole
Rotation direction of insulation insert
P type (anti-clockwise)
Number of poles
12 pole
Coding Grooves
3
Contact type
crimp Pin
Max. installation height
2,000 mm
Material
Zinc die-casting/brass, nickel-plated
Union nut/screw
Brass, nickel-plated
Insulation body
PA 6.6/PBT, UL 94/V0
Contacts
Brass, gold-plated
Seal
FPM/HNBR
Clamping ring material
Brass, nickel-plated
Plug design
Signal coupling
Temperature range
-4 °F to +266 °F (-20 °C to +130 °C)

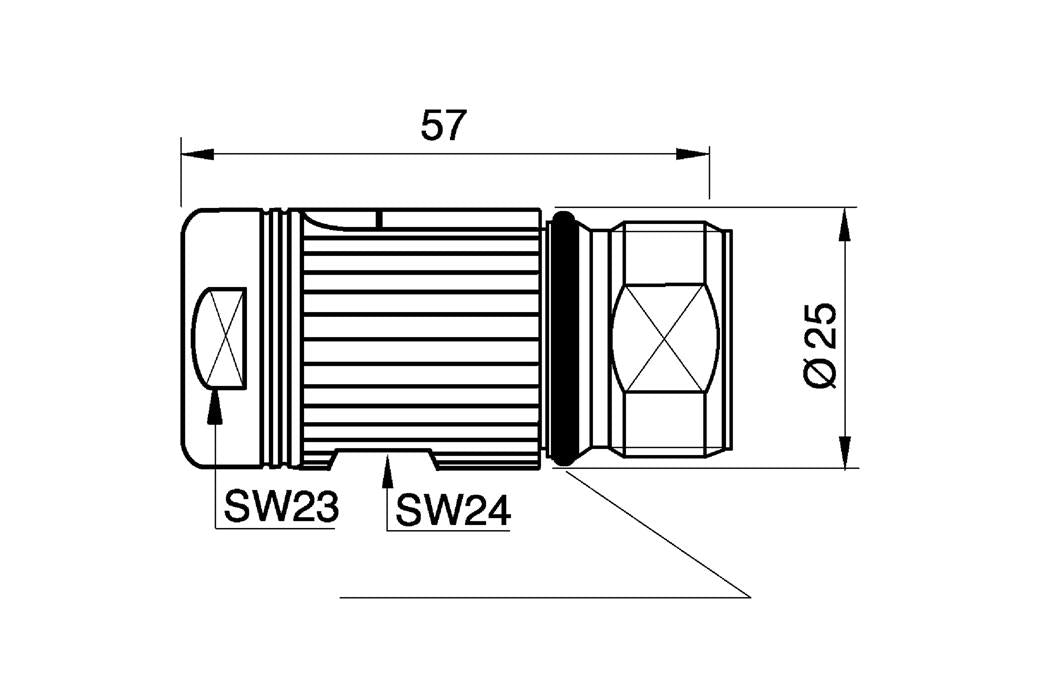

Dimensions
Clamping range
9.0-13.2 mm
Crimp insert
12x1.0 mm
Electrical Properties
Max. continuous nominal current
9 A
Nominal voltage (AC/DC)
125 V
Testing voltage
2500 V
Contact resistance
< 5 mΩ
Insertion cycles
> 50
Protection class
IP 66/67 [plugged]
Pollution degree
3
Over-voltage category
III

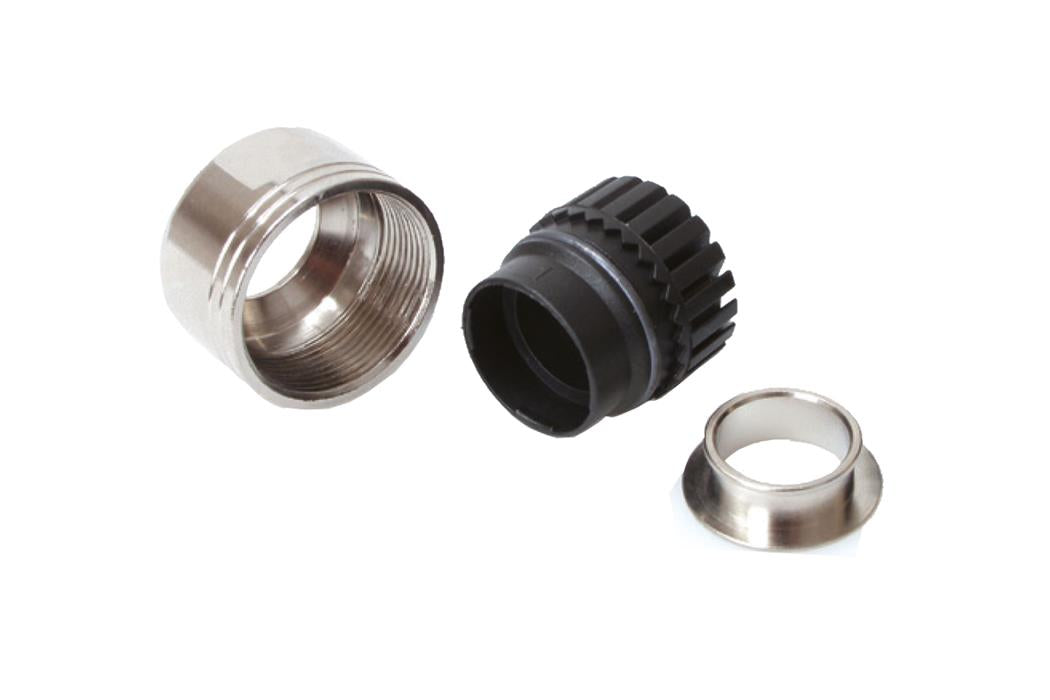

12 Pole Signal Coupling Standard Connector MAT0179611
Description
• It is M23 Power Coupling Standard Connector series A. It is Zinc die-casting/brass, nickel-plated material. It's Temperature range -4 °F to +266 °F (-20 °C to +130 °C). It Contact type crimp pin.
Specification
• Material: Zinc die-casting/brass, nickel-plated • Pollution degree: 3 • Protection class: IP 66/67 [plugged] • Over-voltage category: III • Temperature range: -4 °F to +266 °F (-20 °C to +130 °C) • Union nut/screw: Brass, nickel-plated • Clamping ring material: Brass, nickel-plated • Contacts: Brass, gold-plated • Seal: FPM/HNBR • Insulation body: PA 6.6/PBT, UL 94/V0 • Contact type: Crimp pin • Plug design: Signal coupling
