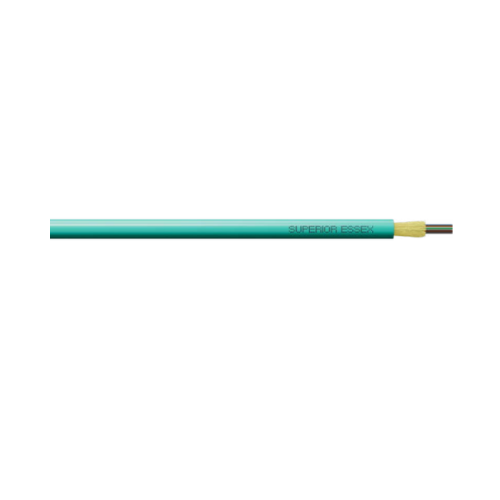

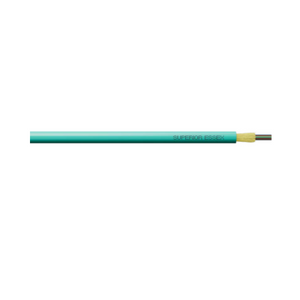

12 Fiber OFNP OM4 3mm Microarray Data Center Interconnect Cable Multimode Aqua P4012PG01

Product Information

Specification

About:

The Microarray Data Center Interconnect Cables are designed for high performance in a small package. The 2-fiber through 12-fiber premises loose tube interconnect has an outside diameter of only 2 mm or 3 mm. The 24-fiber duplex contains two, 12-fiber 3 mm interconnect cables with an overjacket. The fibers can be fusion spliced,  connectorized to high density MTP/MPO mechanical array connectors or attached to standard single ferrule mechanical connectors (LC, SC, ST, etc.) via a furcation kit. The loose fibers are surrounded by aramid yarns and a low smoke PVC (LSPVC) plenum or riser-rated jacket. Its small size allows for denser fiber routing than traditional tight buffered cables; its loose-tube construction gives it superior performance and installation ease compared to ribbon interconnect cable.

Also Know As:

3 mm Plenum Cable, OFNP Data Center Cable, Non-Riser Cable, 12 Fiber Microarray Cable, 12 Fiber OM4 Cable, Multimode 24 fiber cable, Microarray Interconnect Cable.

Applications:

• 10, 40, 100, 200 and 400 Gb Ethernet and legacy speeds
• Data centers
• High density installations
• MTP/MPO array connectors

Benefits:

• Contributes toward 1 LEED point under the Material and Resources credit (MRc)
• Allows for direct connection to MTP/MPO array connectors
• Worry-free installation and performance
• Fire-listed cables allow placement in plenum and riser spaces
• Economical plug and play solution

Features:

• UL Certified Environmental Product Declaration (EPD)
• Health Product Declaration
• 2 mm loose tube or 3 mm loose tube interconnect with two through twelve 250 micron fibers
• Meets or exceeds ANSI/ICEA S-83-596 and GR-409-CORE requirements for interconnect cable
• Available with TeraFlex singlemode, and laser-optimized 50/125 micron multimode fiber types
• Designed for MTP/MPO connectors

Specification:

• Fiber Count: 12
• Fiber Type: Multimode OM4 - TeraFlex Bend Resistant Laser Optimized 50/125 - 10G/550m
• Nominal Diameter: 0.12" (3 mm)

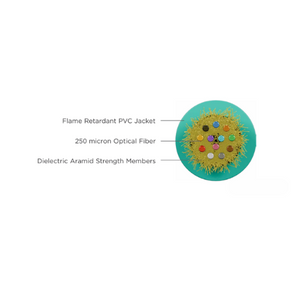

• ≤ 12-Fiber Configuration: 250 micron optical fibers surrounded by dielectric aramid yarns in a 2 mm or a 3 mm loose tube
• Jacket: Flame retardant, low smoke PVC
• Nominal Weight: 6 lbs/kft
• Maximum Tensile Loading: Install: 80 lbs, Long Term: 25 lbs
• Minimum Bend Radius: Install: 1.8 inch, Long Term: 1.2 inch
• Flame Rating: Plenum
• Package: Plywood reel
• Jacket Color: Aqua
• Part Number: P4012PG01
