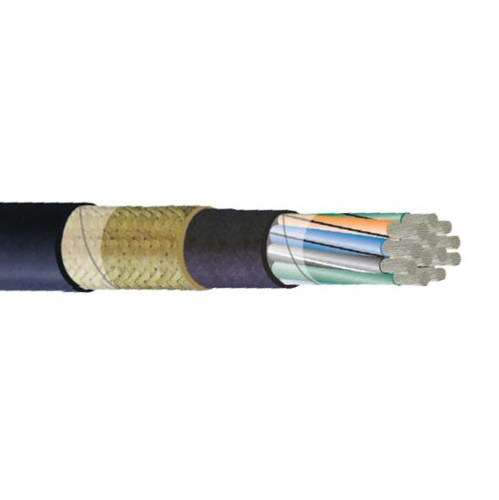

12 AWG 24C Aluminum Armored and Sheathed Type P Drilling Rig & Marine Control Cable 600V/1kV

12 AWG 24C Aluminum Armored and Sheathed Type P Drilling Rig & Marine Control Cable 600V/1kV

Application:

• DRILMAR 125-XE cables are specifically designed for the installation and use in marine environments, for use on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. These cables are used in control, indicating, communication, electronic and similar circuits where multiple conductor cables are required.
• Typical applications include: Driller’s console, fire and gas detection systems, bilge and ballast controls and general alarm systems.

Also Known As:

12 AWG 24C Type P Rig Cable, Type P Cable, 12 AWG 24C Type P Drilling Rig and Marine Cable, Rig Cable, 12 AWG 24C Type P Power Cable, Shipboard Cable, Armored and Sheathed Cable.

Standards:

• IEEE 1580
• Recommended Practice for Marine Cable for Use on Shipboard and Fixed and Floating Platforms.
• IEEE 45
• Recommended Practice for Electrical Installations on Shipboard Cable.
• UL 1309
• Marine Shipboard Cable.
• CSA C22.2 No. 245
• Marine Shipboard Cable.

Features:

• Engineered for easiest installation. Extra flexible stranding meets IEEE, UL, and CSA requirements.
• Maximum conductor operating temperature: 100 °C as Type P per IEEE, and 110°C as Type X110 per UL and CSA. Meets ampacity ratings per ABS, DNV, LRS, and TCMS.
• DRILMAR XLPO Insulation:
• Superior oil and chemical resistance.
• Sunlight resistant.
• Rated at 125 ºC.
• Passes Cold Bend at -55 ºC.
• Heavy Duty CP Jacket:
• Arctic Type XE design.
• Abrasion and sunlight resistant.
• Rated at 90 ºC.
• Completed cable offers superior flame resistance meeting:
• 70,000 Btu Flame Tests IEEE 1202/FT4, IEEE 383, UL 1685, ICEA T-30-820, and IEC 332 Category A.
• 210,000 Btu Flame Test ICEA T-29-520.
• Arctic Type design meets Cold Bend and Impact Tests at -40 ºC, exceeding the Transport Canada Marine Safety requirements.

Construction:

• Conductor: Soft annealed flexible Tin Coated Copper per IEEE, UL, and CSA.
• Separator Tape: Polyester tape as required.
• Insulation: Flame retardant and sunlight resistant Crosslinked Polyolefin (XLPO) per IEEE. Also meets and exceeds the requirements of UL and CSA for Type X110. DRILMAR 125-XE is a 125 °C XLPO.
• Identification: Color coded insulation per IEEE, UL and CSA.
• Assembly: Conductors cabled round with moisture and flame retardant fillers, as required and binder tape.
• Jacket: Flame retardant and sunlight resistant Arctic Type Chlorinated Polyethylene (CPE) per IEEE, UL and CSA.
• Armor: Standard - Bronze.
• Overall Sheath (optional): Flame retardant and sunlight resistant Arctic Type Chlorinated Polyethylene (CPE) per IEEE, UL, and CSA.

Specifications:

• Size: 12 AWG
• No. of Conductor: 24
• Jacket Thickness (mils): 80
• Jacket Thickness (mm): 2.1
• Nominal OD (in): 1.43
• Nominal OD (mm): 36.4
• Net Weight lb/kft: 1227
