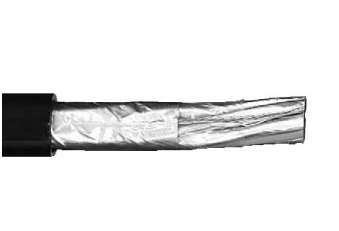

12/2 XLP/PVC OAS TC-ER

12/2 XLP/PVC OAS TC-ER
Roll over image to Zoom

12/2 XLP/PVC OAS TC-ER

Write a Review
Ask a Question Download PDF
SKU: NNC1177X

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT

Categories: All

Price:
$0.55 /FT
$0.55 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Specification

12/2 XLP/PVC TC-ER

Applications:

XLP/PVC tray control cables are used for current transmission to smaller utility loads. The electrical cable has a voltage rating of 600 V. XLP/PVC is perfect for wiring control systems. This durable electrical cable is also commonly used for power, control, and lighting circuits. XLP/PVC tray control cables are also suitable for control systems, such as oil and petroleum machines and automotive plant systems. Tray Control cables are also used in domestic wiring, commercial applications, and industrial systems. XLP/PVC tray control cables are resistant to chemicals and mechanical impact. They have a temperature range of -30°C to 90°C in both dry and wet conditions. The electrical cables are resistant to sunlight and are suitable for direct burial.

Also Known As:

12/2 Cable Tray, 12/2 Cable Tray Types, 12/2 Electrical Cable Tray, 12/2 Pvc Cable Tray, 12/2 wire cable tray, 12/2 cable tray wire, 12/2 XLP Cable, 12/2 PVC Cable, 12/2 Tray Instrument Cable, 12/2 TC-ER Cable, 12/2 Exposed Run Tray Cable.

Standards:

  • UL Standard 1277 Type TC-ER
  • NEC Article 336
  • NEC Division 2 hazardous locations
  • UL 1685 Flame Test
  • IEEE 383 Flame Test
  • ICEA S-73-532
  • ICEA S-95-658 (WC70)
  • EPA 40 CFR, Part 26 C, heavy metals per Table 1, TCLP

Conductor:

The cable has stranded B tinned copper conductors that meet the requirements of ASTM B-33 and B-8.

Insulation:

XLPE cross-linked polyethylene insulation is resistant to moisture, flame, heat, and mechanical impact.

Jacket:

PVC is a black durable jacket resistant to moistures, flames, abrasion, chemicals, oils, sunlight, and acids.

Specification:

  • Gauge: 12
  • No. Conductors: 2
  • Stranding: 7/0.0305
  • Insulation Wall, Nom OD Inches: 0.030
  • O.D. Inches: 0.408
  • New Weight lb/1000FT: 99 Lbs


*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
