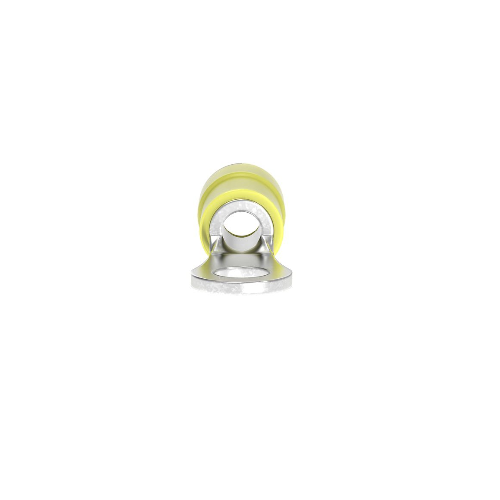

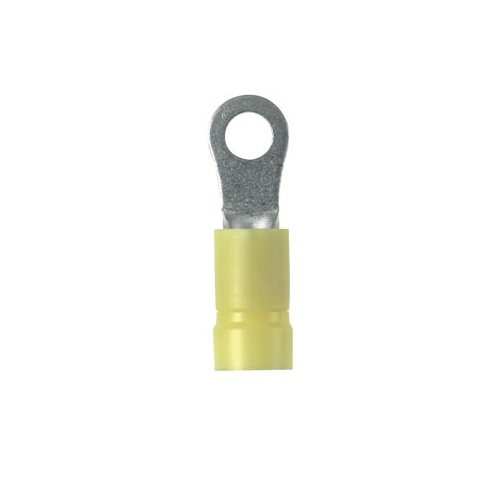

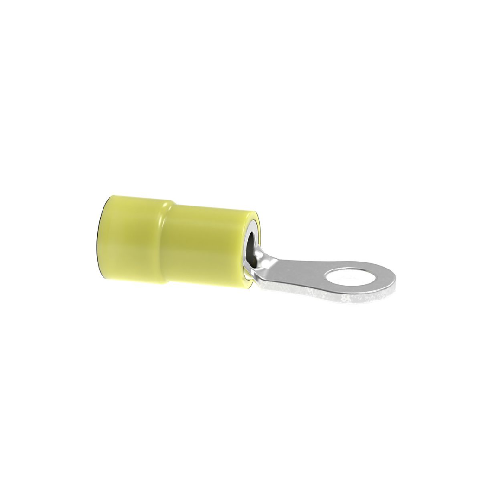

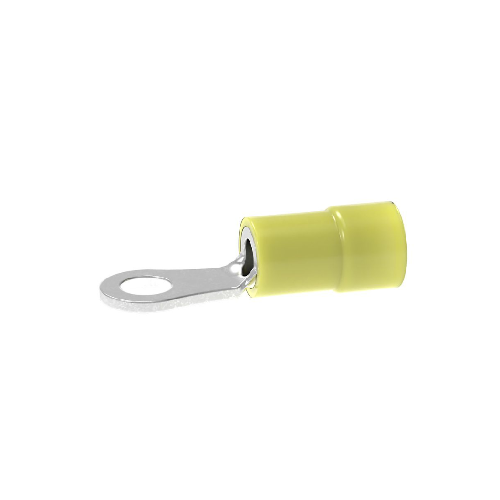

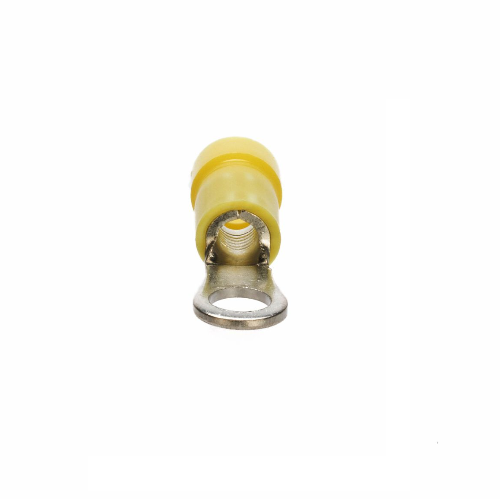

12-10 AWG StrongHold Terminal Ring Yellow EV10-10RB-Q (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Product Type | Ring Terminal |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Stud Size | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | StrongHold |
| Barrel Type | Funnel |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Barrel Length (In.) | 0.45 |
| Barrel Length (mm) | 11.3 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Overall Length (mm) | 26.7 |
| Overall Width (mm) | 7.9 |
| Seam Type | Butted |
| For Use With | CT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-251 |
| Part No. | EV10-10RB-Q |
Description:
StrongHold EV10-10RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. Accommodates 12-10 AWG wire gauge, compatible with #10 Stud, are yellow in color, and come in packages of 25.
