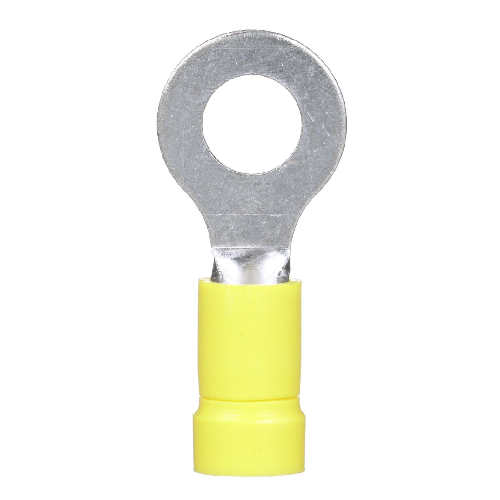

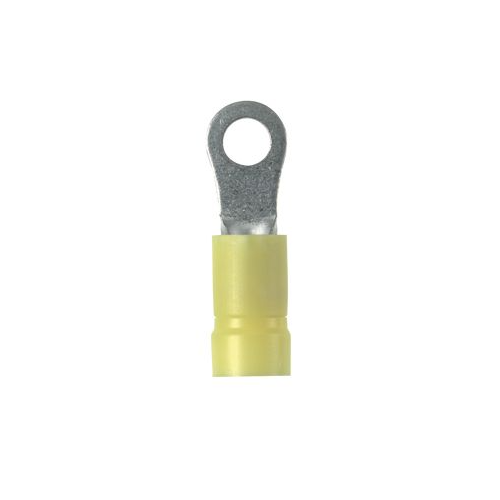

12-10 AWG Pan-Term Terminal Ring PV10-14R-E (Pack Of 20)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Product Type | Ring Terminal |
| Stud Size | 1/4" |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Sub Brand | Pan-Term |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
| Barrel Type | Funnel |
| Base Material | Copper |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Insulation Material | Vinyl |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Flammability Rating | UL94V-0 |
| Overall Length (mm) | 31.2 |
| Overall Width (mm) | 13.2 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part No. | PV10-14R-E |
Description:
Ring Terminal, 12 – 10 AWG, 1/4" stud size, vinyl insulated, funnel entry, convenience package.
Part Features
• Ring tongue design assures a secure connection in high vibration applications
• Insulation support helps to prevent wire damage in bending applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
