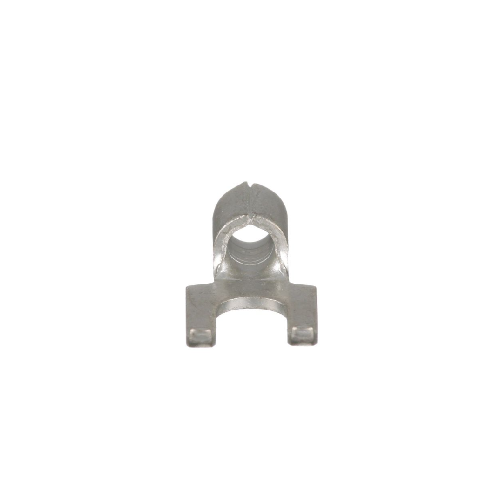

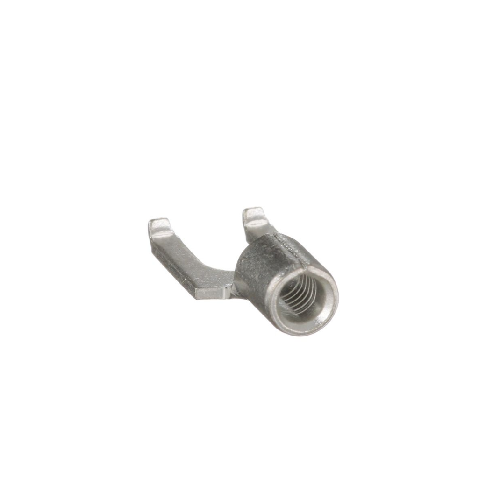

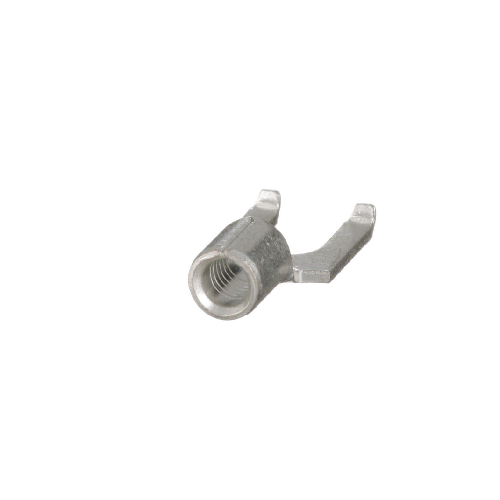

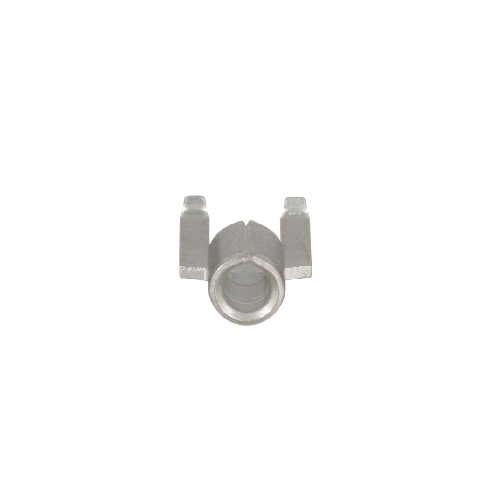

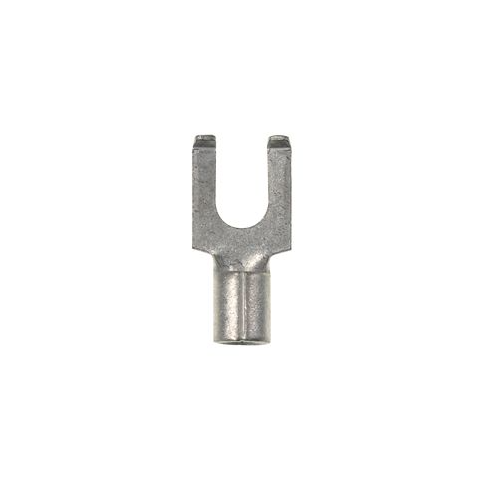

12-10 AWG Pan-Term Loose Piece Fork P10-10FF-D (Pack of 500)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Fork Type | Flanged Fork |
| Product Type | Flanged Fork Terminal |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Stud Size | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Sub Brand | Pan-Term |
| Barrel Type | Standard |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 0.28 |
| Barrel Length (mm) | 7 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Overall Length (mm) | 20.3 |
| Overall Width (mm) | 9.7 |
| Seam Type | Brazed |
| For Use With | CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570) |
| Part Features | Fork design provides for fast and easy installation, without the need to remove fastener Flange design provides extra secure connection on a variety of applications Internal barrel serrations assure good wire contact and maximum tensile strength Barrel of terminal internally beveled to provide quick and easy wire insertion |
| Part No. | P10-10FF-D |
Description:
Flanged Fork Terminal, 12-10 AWG, #10 stud size, non-insulated, bulk package.
