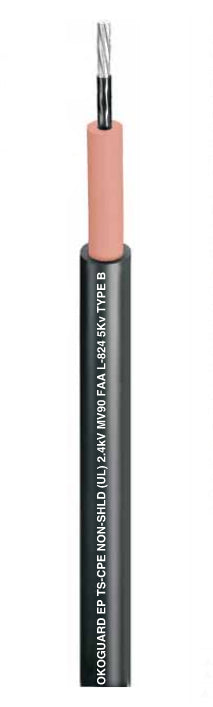

114-24-2225 Okoguard Okolon TS-CPE Type MV-90 2.4KV Non shielded Power Cable - 1/0 AWG

Insulation

Okoguard is Okonite's registered trade name for its exclusive ethylene-propylene rubber
(EPR) based, thermosetting compound, whose optimum balance of electrical and physical properties is unequalled in other solid dielectrics. Okoguard insulation, with the distinctive red color and a totally inte-grated EPR system, provides the optimum balance for long, problem free service.

Jacket

The Okolon TS-CPE jacket on this cable is avulcanized chloronated polyethylene based compound which is mechanically rugged, flame, radiation and oil resistant.

Applications

Okoguard-Okolon TS-CPE 2 .4 kV cables are heavy duty nonshielded cables designed for use at up to 2.4 kV phase-to-phase in wet or dry locations in accordance with NEC Section 310.10. Okoguard-Okolon TS-CPE nonshielded cables are recommended for power distribution and motor circuits in generating plants and substations; in industrial and commercial buildings Single conductors may be installed in indus- trial or commercial occupancies in triplexed or random lay in any raceway or duct in wet
or dry locations, or in open runs as permitted by NEC Article 396. Sizes 1/0 AWG and larger, may be installed in cable trays where permitted by NEC Section 392.10.

Conductor: Annealed uncoated copper compact stranded per ASTM B-496.

Strand Screen: Extruded semiconducting. EPR strand screen. Meets or exceeds electrical and physical requirements of ICEAS-96-659/NEMA WC71 and UL 1072.

Insulation: Meets or exceeds electrical and physical requirements of ICEA S-96-659/NEMA WC71 and UL 1072.

Jacket: Meets or exceeds electrical and physical requirements of ICEA S-96-659/NEMA WC71 for chlorinated polyethylene jackets.

UL listed as Type MV-90, sunlight resistant and for use in cable tray in accordance with UL 1072. CSA listed as RW90 as 5kV non-shielded (FT4 1/0 and larger) -25°C in accordance with CSA C22.2 No 38. 1/C non-shielded cables can surface dis- charge in service when in a random phase spacing or when in contact with grounded surfaces.

Product Features

• Okoguard cables meet or exceed all recognized industry standards (UL, CSA, NEMA/ICEA, IEEE).
• 90°C continuous operating temperature.
• 130°C emergency rating.
• 250°C short circuit rating
• Passes UL and IEEE 383 and 1202 (1/0 and larger) Vertical Tray Flame Test.
• Sizes 1/0 and larger meet CSA FT4 Vertical Tray Flame Test.
• Sizes #1 and smaller meet CSA FT1.
• Excellent corona resistance.
• Radiation resistant.
• Exceptional resistance to “treeing”.
• Stress cones not required.
• Moisture resistant.
• Resistant to most oils, acids, and alkalies.
• Sunlight Resistant.
• Sizes #6 and #8 AWG are identified as FAA-L-824, Type B 5kV rated.

Specifications:

Part Number: 114-24-2225
Size: 1/0 AWG
Insulation Thickness - mm: 3.18 mm
Jacket Thickness - mm: 2.03 mm
Aprox OD, Inches: 0.80
Aprox Net Weight Lbs/1000: 580
Ampacities conduit in Air: 180
