10kV Oscilloscope Probe CT4432
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | High Voltage |
| Bandwidth | DC to 40 MHz (-3 dB) |
| Attenuation | 1000x |
| Compensation Range | 5 pF to 50 pF |
| Humidity | ≤ 80% RH @ 40°C (104°F) |
| Cable Length | 2 m (6.6 ft) |
| Weight | 250 g (.55 lbs) |
| Dimensions |
340 mm x 75 mm x 75 mm (13" x 3" x 3") |
| RoHS 2 | Compliant |
| Part No. | CT4432 |

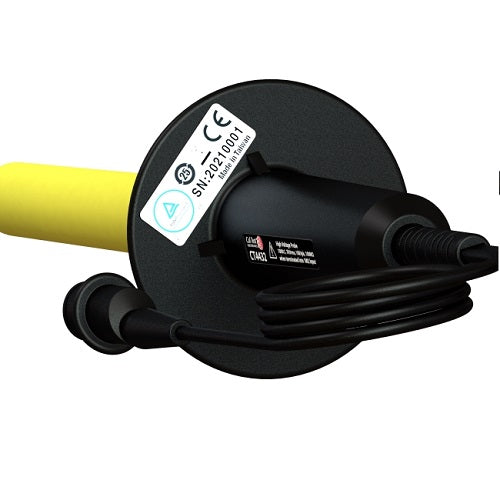

10kV Oscilloscope Probe
Description:
Because an oscilloscope has limits to the input voltage it can accept, measuring higher voltages may sometimes require the use of an attenuating high-voltage probe. The CT4432, with an improved dual-resistor design, can accurately and safely step-down higher voltages to an acceptable level. It offers 1000x attenuation and features a compensation range of 5 pF to 50 pF for a wide range of oscilloscope capacitance matching.
The CT4432 High-Voltage Oscilloscope Probe enables you to safely measure voltage levels up to 10 kV. With the Cal Test Electronics name and certification by cTUVus, you can be confident this test accessory is both reliable and safe. The CT4432 is covered by a two-year warranty.
This probe is compatible with oscilloscopes (of 1 MΩ input) from all major manufacturers.
Features:
• Bandwidth of 40 MHz ①
• Up to 10 kV input (DC + ACpeak)
• cTUVus safety certified
• Improved dual-resistor design
• Attenuation: 1000x
• Compensation range of 5 pF – 50 pF
• Replaceable tips
• Insulated BNC connection
• Can be used with your DMM by employing BNC Converter CT3197B
• RoHS 2 Compliant
• Two-year warranty

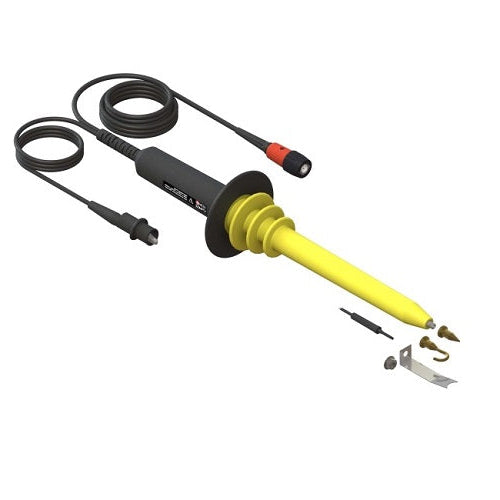

Kit Contains:
• High voltage probe
• Trimmer tool
• Tip
• Hook tip
• Flat bar tip
The CT4432 High-Voltage Probe is ideal for:
• High-Voltage non-category rated measurements
• Lab environments
• Extended bandwidth measurements ①
