10kV Oscilloscope Probe CT4025
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | High Voltage |
| Bandwidth | 120 MHz |
| Attenuation | 100x |
| Compensation Range | 10 – 35 pF |
| Humidity | ≤85% RH @ 35° C (95° F) |
| Cable Length | 2 m ± 0.2 m |
| Readout Actuator | Yes |
| Weight | 460 g (1.0 lbs) |
| Dimensions |
8 x 8 x 32 cm (3.1 x 3.1 x 12.6 in) |
| RoHS 2 | Compliant |
| Part No. | CT4025 |
10kV Oscilloscope Probe
Description:
High voltage probes allow safe and accurate voltage measurement using your oscilloscope.
Model CT4025 features a 100:1 divider ratio with voltage up to 10 kV (DC+peak AC), 7 kV (ACrms) and bandwidth up to 120 MHz.
Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
Features:
• Meets IEC 61010-031 safety standard
• Up to 10 kV DC + peak AC
• 120 MHz bandwidth
•Readout actuator 100x
• Handle/Body: Black/Grey
• Packaged in foam-lined carrying case

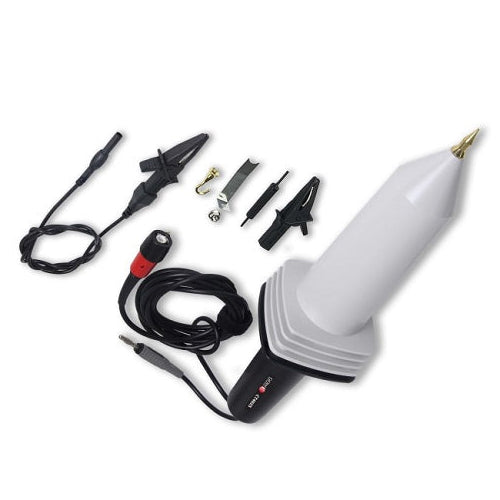

Kit Contains:
• High voltage probe
• Grounding alligator clip
• Grounding lead extension w/ alligator clip
• Trimmer tool
• Tip
• Hook tip
• Flat bar tip
• User manual
Download PDF Spec Sheet
