100MHz Differential Probe CT4198
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Active Differential |
| Bandwidth | 100 MHz |
| Attenuation | 20x/200x/2000x |
| Accuracy | ±2% |
| Source Impedance | 50 Ω |
| Power Supply | External 9 VDC power supply (CT3957-NA) |
| Cable Length | 100 cm (separate lead) |
| Input Leads Length | 55 cm (separate leads) |
| Weight | 390 g |
| Dimensions | 218 mm x 83 mm x 30 mm |
| Part No. | CT4198 |
100 MHz Differential Probe
Description:
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground.
Model CT4198 features 20x/200x/2000x attenuation settings, 100 MHz bandwidth, and ±8 kV maximum differential—all in a compact and rugged housing. Compatible with oscilloscopes from all major manufacturers, the probe is ideal where high sensitivity and dynamic range are needed. The probe is exclusively powered by the included 9 V power adapter (CT3957-NA).
Features:
• Meets IEC 61010-1 safety standard
• Up to ±8 kV differential
• 100 MHz bandwidth (-3 dB)
• Power and over-range indicators
• Optional European-style 9 V power adapter (CT3957-EU)

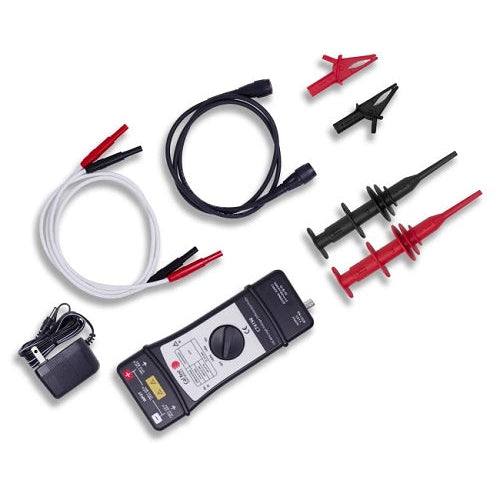

Kit Contains:
• Differential probe
• (2) HV Pincer clips, black & red
• (2) Alligator clips, black & red
• (2) HV Banana plug leads, black & red
• Insulated BNC cable
• Power adapter (CT3957-NA)
• User manual
Download PDF Spec Sheet
