Product Information
Specification
| Bandwidth | 100 MHz |
| Attenuation | 100x / 200x / 500x / 1000x |
| Accuracy | ±2% |
| Safety Specifications | IEC 61010-031 CAT II |
| Source Impedance | 50 Ω |
| Power Supply | 9 V power adapter (included) |
| BNC Cable Length | 100 cm |
| Input Leads Length | 55 cm |
| Weight | 280 g |
| Dimensions | 240 x 80 x 30 mm |
| Part No. | CT4072 |

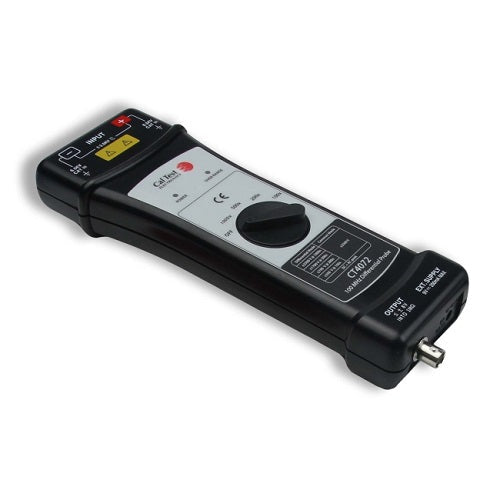

100 MHz Differential Probe CT4072
Description:
The CT4072 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe has a 100 MHz bandwidth, and it offers 100x, 200x, 500x, and 1000x attenuation settings. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
Features:
• Meets IEC 61010-031 safety standard
•Selectable attenuation settings of 100x/200x/500x/1000x
• 100 MHz bandwidth
• Up to ±3500 V differential
• High accuracy (±2%)
• Power and over-range indicator LEDs
• Optional European-style 9 V power adapter (CT3957-EU)

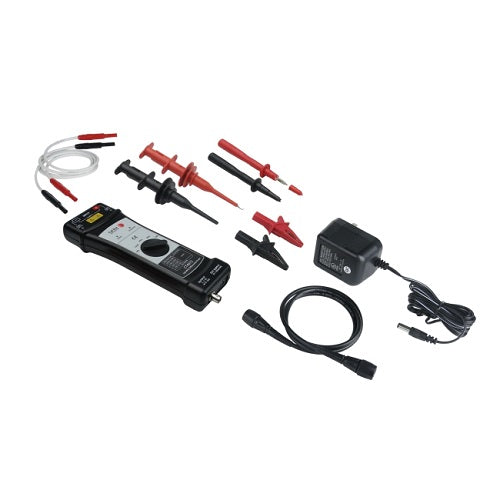

Comes with:
• (2) High voltage hook probes, black & red
• (2) Alligator Clips, black & red
• (2) 4 mm probes, black & red
• (2) Sheathed 4 mm banana plug test leads, silicone jacketed, black & red
• Insulated BNC cable, 100 cm
• 9 V Power adapter included (CT3957-NA)
Download PDF Spec Sheet
