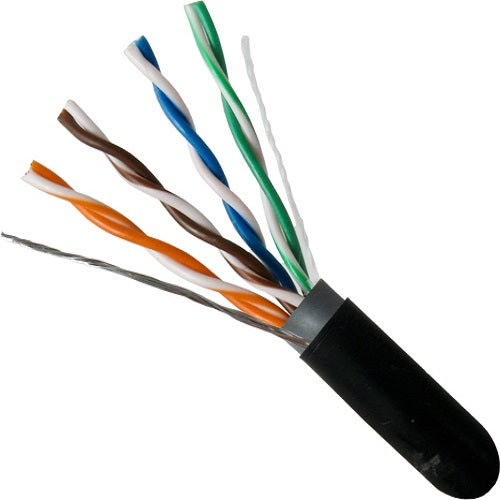

1000' 24 AWG 4 Pairs Black CAT5E CMXT Direct Burial Unshielded LSZH Jacket Cable

Product Information

Specification

DESCRIPTION:

Category-5E Solid UTP, 24 AWG Direct Burial, Waterproof, 8-Conductor Solid-Bare Copper.

FEATURES:

⦿ High-Performance Data Cable

⦿ Category-5E Unshielded Twisted Pair

⦿ 24 AWG Solid Copper Conductors

⦿ Easily Identified Color-Striped Pairs

⦿ 350 MHz Bandwidth for Data Applications,

⦿ Fast Ethernet and 155 Mbps TP-PMD/CDDI

⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801

⦿ Direct Burial (Waterproof)

⦿ ETL Listed, RoHS Compliant

⦿ 1000ft Pull Box

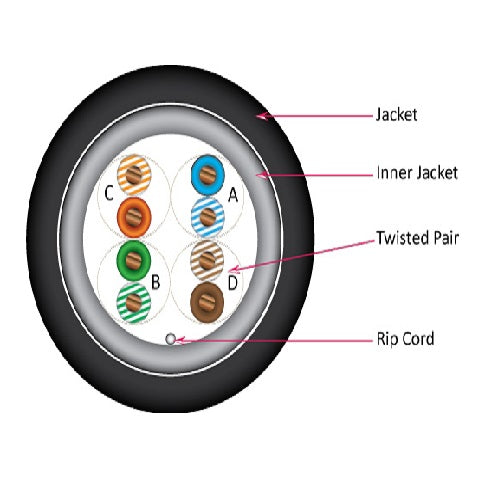

Conductor Solid Bare Copper:

⦿ Size 24 AWG (0.51mm

Insulation PE:

⦿ Average Thickness (mm) 0.208

⦿ Insulation Diameter (±0.005mm) 0.91

⦿ Twisted Pair Diameter (±0.01) 1.92

Assembly Diameter 3.80:

Inner Jacket (Gray) PVC

⦿ Average Thickness (mm) 0.40

⦿ Min. Point Thickness (mm) 0.36

⦿ Outer Diameter (±0.10mm) 4.80

Outer Jacket (Black) LSZH (UV)

⦿ Average Thickness (mm) 0.60

⦿ Min. Point Thickness (mm) 0.54

⦿ Outer Diameter (±0.10mm) 6.00

⦿ Rip Cord: Yes

Color of Pairs:

⦿ Pair 1: Blue, White-Blue

⦿ Pair 2: Orange, White-Orange

⦿ Pair 3: Green, White-Green

⦿ Pair 4: Brown, White-Brown

Mechanical Characteristics:

⦿ Test Object Jacket

⦿ Test Material LSZH(UV)

⦿ Before Tensile Strength (Mpa) ≥13.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-20±2º Cx4 hrs) No Crack

Marking on Jacket:

⦿ VERTICAL 4001453 cETLus verified CMX UTP 4PR 24 AWG OUTDOOR DIRECT BURIAL (DRY) UV LSZH CAT5E 350MHz TIA/EIA - 568C.2 RoHS XXXFT
