Product Information

Specification

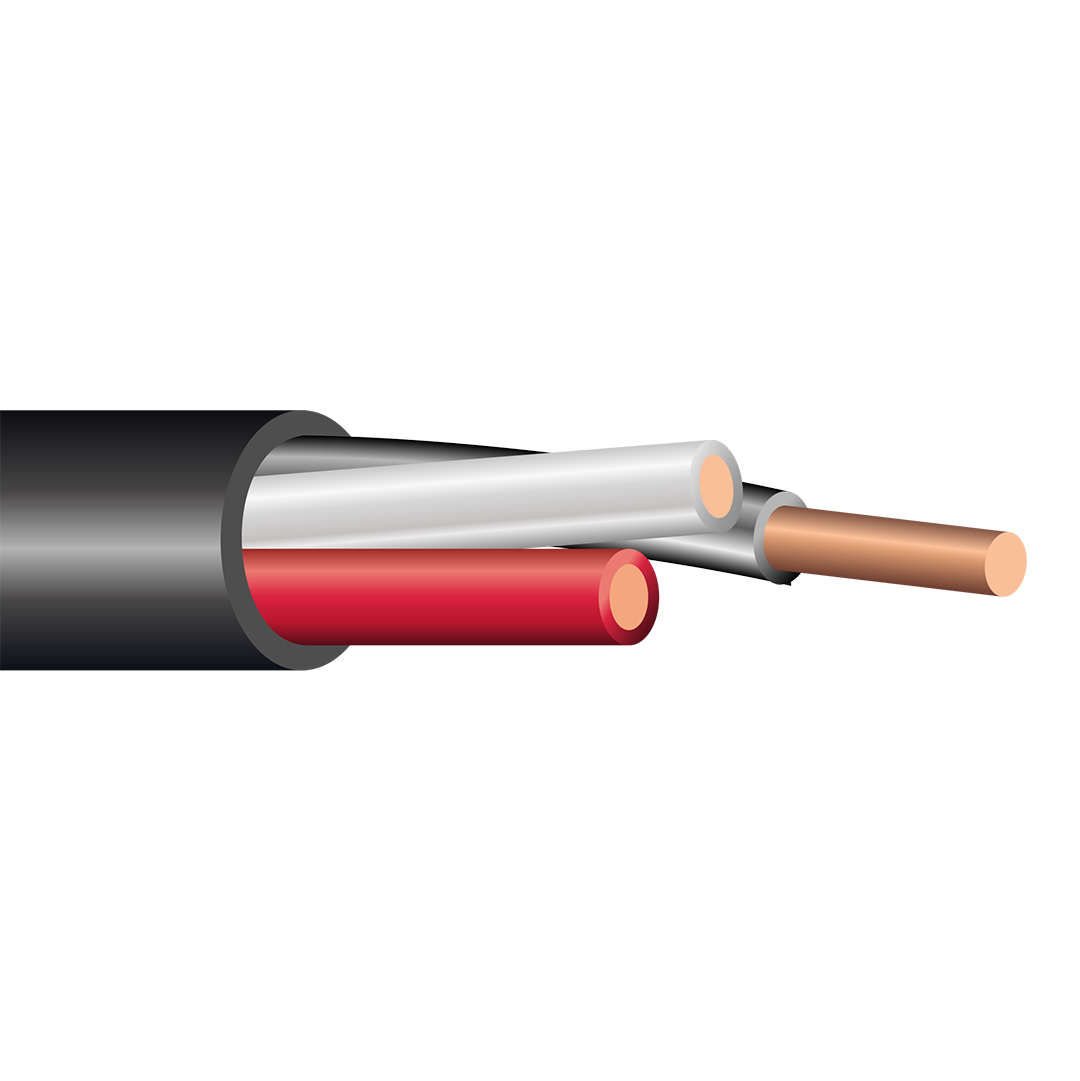

10/4 SJTO Flexible Portable Cord 300V UL/CSA Cable

Allowable Ampacity For 10/4 SJTO Portable Cord 300v UL/CSA White Cable: 25 Amps

Applications:

STO is a flexible portable junior service cable with a thermoplastic oil-resistant jacket. Unlike other service entrance cables, its jacket is not resistant to water and weather. The electrical cable is used in portable equipment, including washing machines, hospital devices, sound devices, motors, and portable lighting. The temperature rating of an electrical cable is between -20ºC and +60ºC. The cable is rated 300V and is suitable for both wet and dry applications.

Also Known As:

10/4 SJTO Portable Power Cable,10/4 SJTO,10/4 SJTO Power Cord,10/4 SJTO Portable Cord, 10/4 SJTO Service Cord,10/4 SJTO Service Cable,10/4 SJTO Cord, 10/4 SJTO Cable, 10/4 SJTO Wire, 10/4 SJTO Flexible Power Cable, 10/4 SJTO Service Entrance cable.

Standards:

• UL Flexible Cord - UL Subject 62
• CSA
• MSHA Approved

Construction:

Conductor:

Annealed stranded bare copper per ASTM B-174. The conductor has excellent flexibility.

Jacket:

Oil-resistant PVC rubber jacket color-coded according to NEC. The first two conductors are black and white, the third conductor is green, and the fourth one is red.

Specification:

• Size: 10 AWG
• Number of Conductors: 4
• Conductor Strand: 104/30
• Insulation Thickness: 1.14 mm / 0.045 inches
• Outside Diameter: 16.12 mm / 0.635 inches
• Weight: 0.290 lbs per ft
• Current Amps: 25 (Green conductor for grounding only)
• Color: Gray

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
