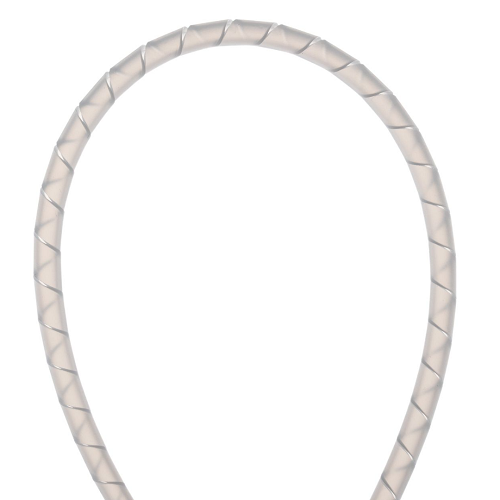

100' Natural Polyethylene Spiral Wrap T38FR-CY
About:
The T38FR-CY Flame Retardant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.38" (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125" to 3" (7.9 mm to 76.2 mm). Color Natural.
Also Known As:
Spiral Wrap, Polyethylene Material, Abrasion-Resistant, Flame-Retardant, Natural Color
Features:
Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable.
Application:
(1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Specification:
| Product Type | Spiral Wrap |
| Color | Natural |
| Environment | Indoor |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant, Flame-Retardant |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Minimum Bundle Diameter (In.) | 0.31 |
| Minimum Bundle Diameter (mm) | 7.9 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.38 |
| Outer Diameter (mm) | 9.6 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Wall Thickness (In.) | 0.05 |
| Wall Thickness (mm) | 1.4 |
| Part No. | T38FR-CY |
