100' Blue Polyethylene Spiral Roll Wrap T50F-C6
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
100' Blue Polyethylene Spiral Wrap T50F-C6
About:

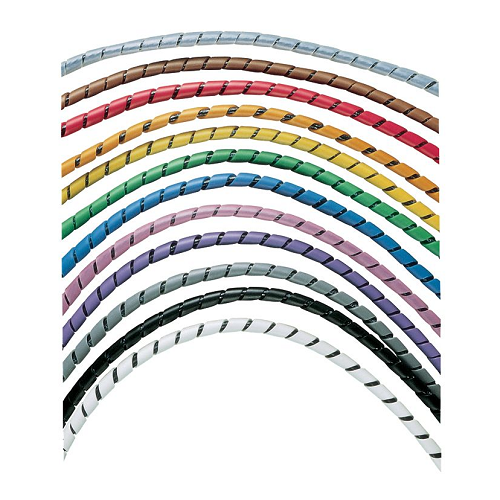

The T50F-C6 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.50" (12.7 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Blue.
Also Known As:
Spiral Wrap, Polyethylene Material, Abrasion-Resistant, Blue Color
Features:
Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable.
Application:
(1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Specification:
| Product Type | Spiral Wrap |
| Color | Blue |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.37 |
| Minimum Bundle Diameter (mm) | 9.5 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.5 |
| Outer Diameter (mm) | 12.7 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Wall Thickness (In.) | 0.06 |
| Wall Thickness (mm) | 1.5 |
| Part No. | T50F-C6 |
