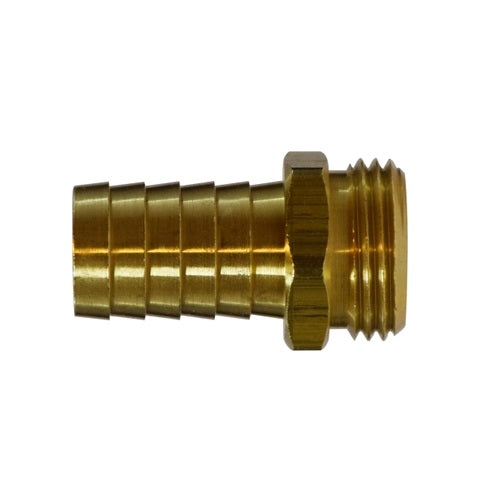

1" X 1" Hose Barb X Male Garden Hose Adapter Brass Fittings 30043
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
| A: | 2.34 |
| B: | 1.47 |
| Hex: | 1.37 |
| Note: | Brass |
| Hose Barb X FGH: | 1” x 1" |
| Part Number: | 30043 |
| Approx Wt Lbs: | 0.260 lbs |
| Shape: | Straight/Connector |
1" X 1" Hose Barb X Male Garden Hose Adapter Brass Fittings 30043
Also Known
1 X 1 HOSE BARB X MALE GARDEN HOSE ADAPTER
Typical Application:
Low-Pressure Air, Fuel, Lube, and Oil Lines
• Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps are needed!!
• Assembly Instructions
1- Lubricate insert.
2- Hold the hose at an angle to insert over the first barb.
3- Continue to push straight on until the hose is seated under the protective plastic cap. Keep hands back from the hose end area so that hose can expand.
• Disassembling Instructions
1- Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2- Bend hose and remove with a quick pull.
