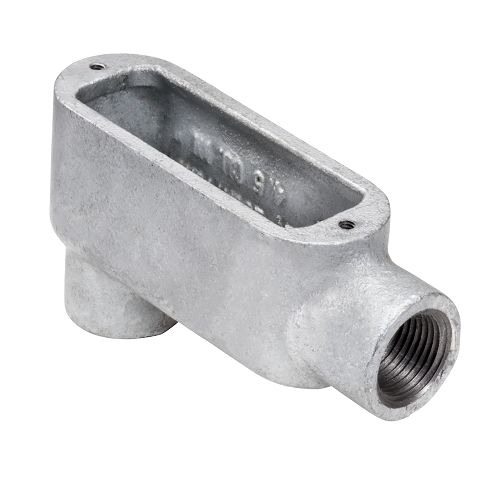

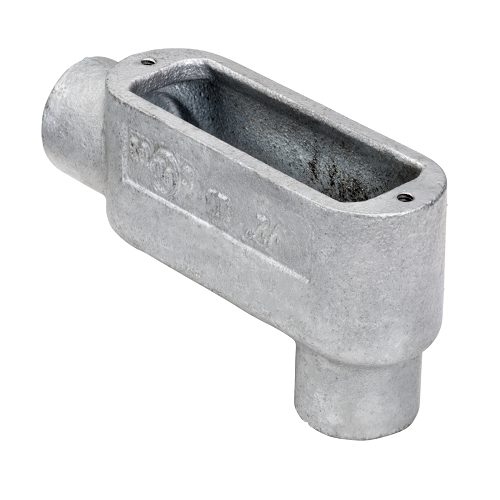

1" Rigid Conduit Bodies LB Type Malleable Iron HDG LB3MHDG (Pack of 7)

Product Information

Specification

About :

It's designed to fit 1-inch rigid or IMC (Intermediate Metal Conduit) conduits. The 'LB' designation refers to the shape of the conduit body, resembling the letter 'L'. It's made of malleable iron, ensuring durability and strength. The HDG (Hot-Dip Galvanized) indicates that the conduit body has undergone a process where it's coated with a layer of zinc. This zinc coating provides excellent corrosion resistance, making it suitable for outdoor or harsh environmental conditions.  It often comes with a cover and gasket to provide a weatherproof seal, protecting the electrical wiring from moisture and dust. It generally features threaded openings to securely connect with the rigid or IMC conduits. This ensures a tight and secure installation.

Also known as:

1" Galvanized Rigid Steel Conduit, 1" Heavy-Wall Conduit, 1" Rigid Metal Conduit, 1" Electrical Metal Tubing.

Specification:

Material : Malleable Iron
Height : 2.86 Inch
width : 1.79 inch
UPC : 751338866157

Features:

• Threaded LB type
• NPT tapered hubs
• Suitable for use in concrete
• Hot dip galvanized finish provides superior protection against severe environmental factors
