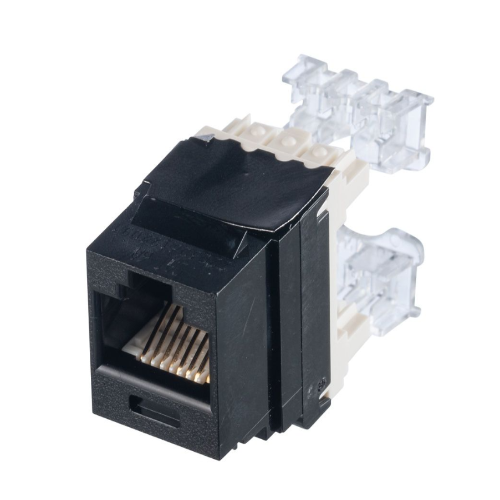

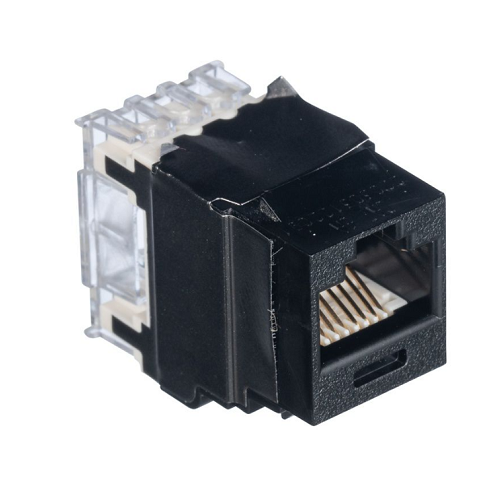

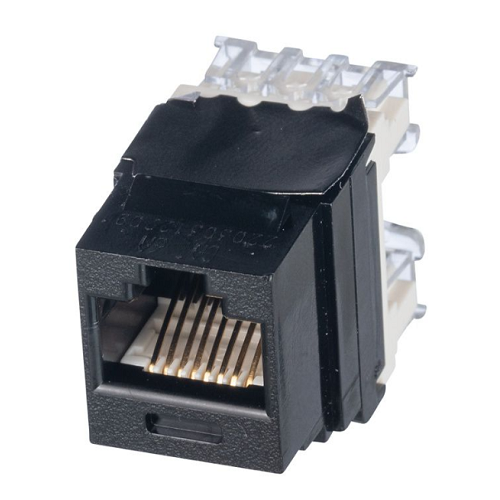

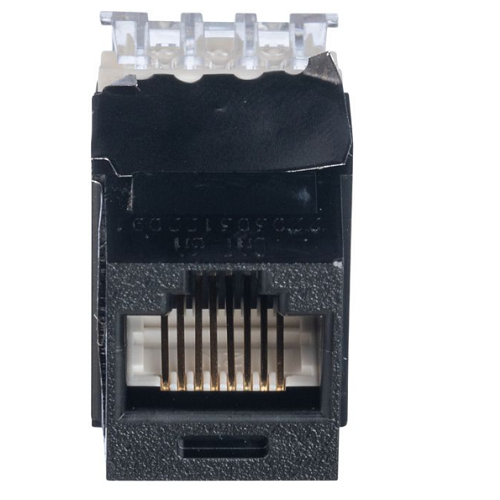

1 Port Replacement DataPatch Cat6A Plus Punchdown Module DRJ6X88TGBL

Product Information

Specification

About:

The RJ45, 8-position, 8-wire replacement port for DataPatch Category 6A Punchdown Patch Panels. Includes clear wire retention cap.

Also Known As:

• RJ45 Punchdown Connector
• Ethernet Punchdown Jack
• Cat6A Keystone Jack
• Network Termination Module

Common Applications:

• Data centers

• Office network infrastructures

• High-speed network applications requiring Cat6A or higher standards

• Workstations for connecting computers, printers, and other network devices

• Multimedia and telecommunication rooms

Standards Met:

• Exceeds channel and component requirements of ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards at swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved and RoHS Compliant

Construction:

• A high-quality, flame-retardant plastic housing

• 110-style punchdown terminals

• Gold-plated contacts for improved connectivity and corrosion resistance

• A color-coded wiring diagram for easy installation

• Tool-less or minimal-tool-required design for wire termination

Features:

• Compatible with both stranded and solid Ethernet cables

• Enhanced crosstalk cancellation and reduced system noise

• Designed for high-speed Ethernet applications, supporting 10GBase-T networks

• Typically includes a dust cap to protect unused jacks

• Termination cap to secure wire terminations and provide strain relief

• Can be re-terminated multiple times
