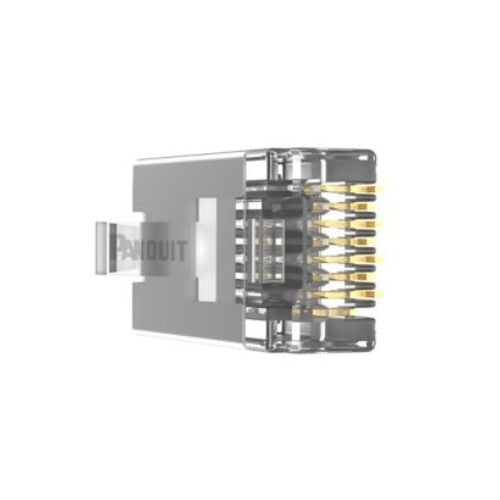

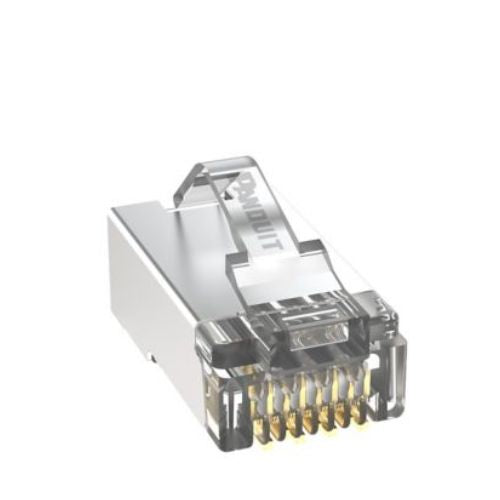

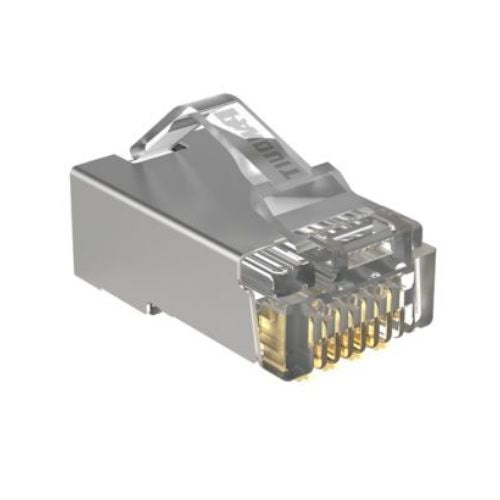

1-Port 8-Position 8-Wire High Performance Unshielded Modular Plug Clear MPS588-C (Pack of 100)

Product Information

Specification

About:

• The 1-Port 8-Position 8-Wire High Performance Unshielded Modular Plug is designed for high-performance networking applications. This modular plug is ideal for use with unshielded twisted pair (UTP) cables, providing reliable and efficient connectivity.
• The robust construction of the plug ensures durability, rated for up to 2500 mating cycles. It features a patented design that prevents snags and provides easy release, making it perfect for frequent moves, adds, and changes. Simplified termination is achieved through the absence of a loading bar, with a guide ramp that facilitates easy conductor insertion and termination.

Also Known As:

RJ45 Modular Plug, Ethernet Connector, Network Cable Plug, UTP Cable Connector, Polycarbonate RJ45 Plug, Single Port Ethernet Plug, Cat5e Modular Plug, Networking RJ45 Connector, Unshielded Twisted Pair Plug, Transparent RJ45 Modular Plug.

Specification:

Features:

• Quickly installs into pre-drilled holes using a fir tree hold mounting method.
• Measures 01.41” x 0.28” (35.8mm x 7.1mm) in size.
• Requires a hole diameter of 0.31” (8.0mm) for mounting.
• Suitable for indoor and outdoor environments.
• Compatible with miniature through heavy cable ties as well as hook and loop mount cable ties.
• Made of impact-modified, weather-resistant Nylon 6.6 for durability.
• Patented tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes.
• Simplified termination requires no loading bar; guide ramp facilitates easy conductor insertion and termination.
• Contacts plated with 50 µm of gold for superior performance.
• Shielded plug housing provides a conductive path for grounding.
• Terminates 26 to 24 AWG, 100 Ohm stranded or solid shielded cable with a maximum conductor insulation diameter of 0.04 in.
