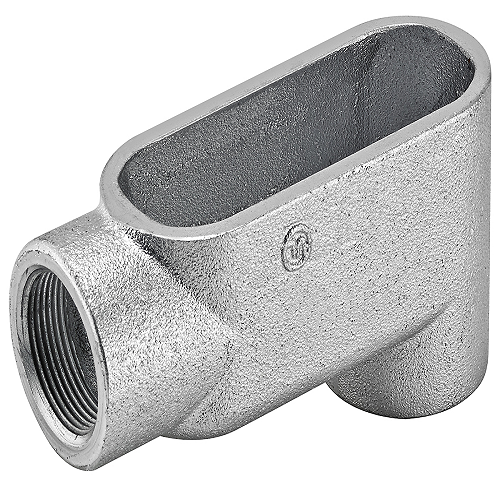

1" Form 7 Gray Iron LB Type Conduit Bodies LB3G7 (Pack of 8)

Product Information

Specification

About :

The body is typically made of gray iron, a type of cast iron known for its durability and corrosion resistance. This makes it suitable for use in harsh environments or in outdoor applications. The "1-inch" designation refers to the nominal size, indicating that it is compatible with 1-inch diameter electrical conduits. Conduit bodies come in various shapes like LB, LL, LR, T, and C. Each type is designed for a specific use, such as changing the direction of the conduit run or providing access for wire pulling or maintenance. They usually carry specific industry standard approvals or certifications, such as those from Underwriters Laboratories (UL) or the National Electrical Manufacturers Association (NEMA), ensuring they meet safety and performance standards.

Also known as:

Iron Pulling Elbow, Threaded Conduit Body, Rigid Conduit Body, Electrical Junction Box.

Specification:

Material : Zinc Plated Gray Iron Material
Height : 1.8 Inch
width : 2.9 inch
UPC : 751338869073

Features:

• Threaded LB type
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
