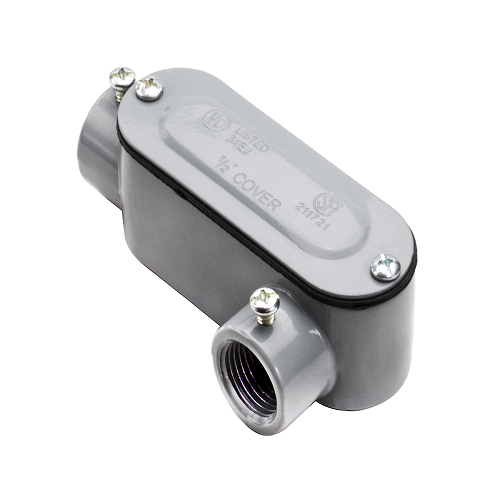

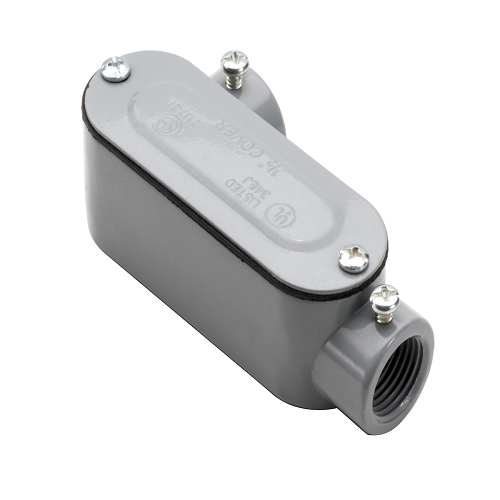

1" EMT And Rigid LL Type With Cover And Gasket LL3SSCG (Pack of 25)

Product Information

Specification

About :

The "1 inch" dimension refers to the internal diameter of the EMT or rigid conduit. EMT is typically made from lightweight, thin-walled steel or aluminum, while rigid conduit is often made from thicker steel or aluminum. The cover and gasket are components used with conduit fittings. The cover is used to close off and protect the end of a conduit run or to cover a junction box. The gasket is used to ensure a tight seal, particularly in outdoor or wet locations, to protect against moisture and contaminants. These conduits and accessories are usually manufactured in compliance with specific industry standards, such as those set by the National Electrical Code (NEC) in the United States. This ensures safety and compatibility in electrical installations.

Also known as:

1-Inch Gasketed Metallic Conduit, 1" Protected Electrical Tubing, 1-Inch Electrical Conduit with Cover and Gasket, 1" Rigid Conduit with Sealing.

Specification:

Material : Powder Coated Die-Cast Copper Aluminum
Height : 1.88 Inch
Width : 2.5 Inch
UPC : 751338837768

Features:

• Threaded LL type with cover and gasket
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations use with threaded rigid metal conduit only
