1.5MHz Current Probe CP6990-EU
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Active Current |
| Measurement Ranges | 1 V/A / 100 mV/A |
| Current (DC + peak AC) | 4 A / 40 A |
| Bandwidth | DC - 1.5 MHz |
| Rise and Fall Time | 0.23 µs (typ.) |
| Battery Life | 4 hours |
| Max. Cable Diameter | 10.3 mm (0.4") |
| Dimensions |
262mm x 81mm x 36mm (10.3" x 3.2" x 1.4") |
| Weight | 310 g w/o battery |
| RoHS 2 | Compliant |
| Part No. | CP6990-EU |
1.5MHz Current Probe
Description:
he active clamp-style current probe features dual sensitivity ranges of 1 V/A and 100 mV/A, allowing accurate current measurements up to 4 A or 40 A, respectively. It offers a bandwidth of up to 1.5 MHz in both ranges and can be powered either by a 9 V battery or the included AC power adapter (CT3957-#).
Features:
• Compact stylish body
• Dual sensitivity ranges
• 1.5 MHz bandwidth (-3 dB)
• Over-range indicator

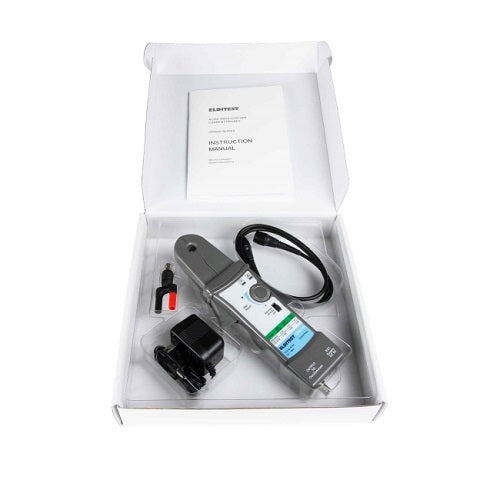

Kit contains:
• Current probe
• Insulated BNC Cable
• BNC to Banana Plugs Adapter
• AC Power Adapter
• User Manual
Download PDF Spec Sheet
