1-3 Type SHD-GC Mining Industrial Cable 15 kV - 25 kV

Application:

• Trailing cable on ac mining equipment where service conditions are severe and maximum safety is mandatory; such as power shovels and drag lines in open-pit mines, quarries, gantry cranes and slag reclaiming.
• Used for high voltage distribution in underground mines where frequent relocation is necessary or where extra flexibility and toughness is desired.

Also Known As:

Type SHD-GC Power Cable, Type SHD-GC Cable, SHD-GC Type Mining Power Feeder Cable, American Mustang Type SHD-GC Cable, Type SHD-GC Portable Power Cable, SHD-GC.

Standards:

• ICEA S-75-381/NEMA WC-58
• Portable and Power Feeder Cables for Use in Mines and Similar Applications.
• CFR Title 30 Federal Regulations, Part 7, Subpart K.
• MSHA 7K-228057

Features:

• Certify by MSHA.
• Meets all requirements of ICEA S-75-381.
• Reformulated compounds suitable for CV curing, developed to meet the high level of physical properties required in service.
• -40 °C Rating CPE Jacket.

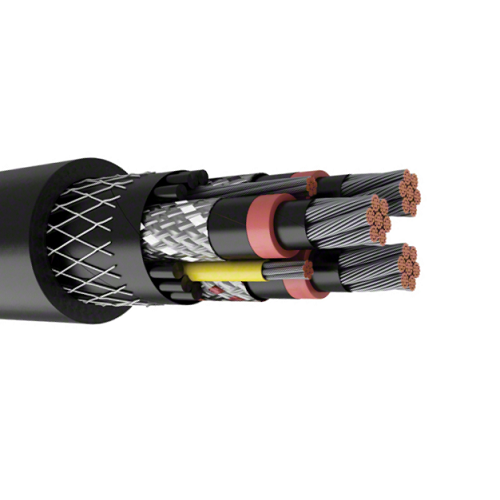

Construction:

• Phase, Grounding and Ground Check Conductors: Soft or annealed tinned coated copper conductor, rope lay flexible stranding per ASTM B172. Conductors 1/0 and larger are class I stranding and conductors #1 and smaller are class H stranding. Conductor
• Shield: A helically applied semiconducting tape.
• Insulation: High quality, heat, moisture, ozone and thermosetting ethylene propylene rubber (EPR) meeting ICEA.
• Insulation Shield: An overlapped semiconducting tape shall be applied over the insulation.
• Ground Check: Thermosetting insulation yellow colored for identification.
• Metallic Component: A composite fiber-copper braid shield, tinned coated copper wires, with colored fibers for phase identification (black, white, red).
• Assembly: Phase, ground check and grounding conductors cabled together with hygroscopic fillers and a binder tape.
• Jacket: Black heavy duty or extra heavy duty chlorinated polyethylene (CPE) compound, applied in one layer over a fibrous reinforcement layer.

Specifications:

• Size: 1 AWG
• Number of Strands: 259
• Size of Each Strand AWG: 25
• Nominal Insulation Thickness (mil): 295
• Ground Conductor Size AWG: 5
• Nominal Outer Jacket Thickness (mil): 261
• Maximum Overall Diameter (In): 3.2
• Approximate Net Weight Copper lb/kft: 4523

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
