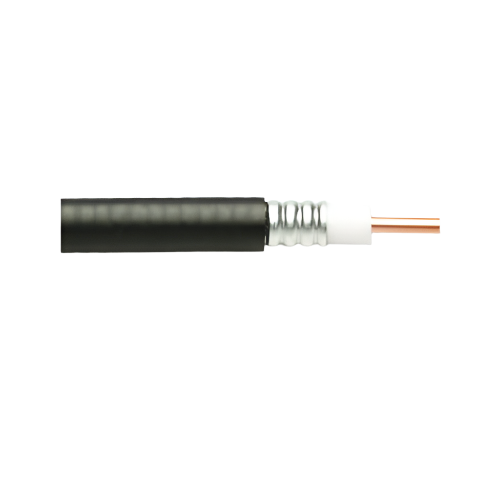

1/2" Riser Coaxial HFAC Low Loss High Flexible Air Dielectric Feeder Cable Black HFAC-12DR 1000 ft

Product Information

Specification

About:

HFAC-12DR is a 1⁄2 inch, 50 Ohm Riser Rated RF Coaxial Cable that enables mobile communications inside buildings. Installed to eliminate dead zones and spotty coverage, this cable functions as the backbone cable of in-building, DAS wireless systems. With its riser (CMR) rating, this coaxial cable offers flexibility and high crush resistance in a 1⁄2 inch size. Designed for high performance, its copper clad aluminum inner conductor, foamed PE dielectric insulation, corrugated aluminum outer conductor and its black outer riser rated jacket exceed the requirements of all in-building DAS active systems.

Also Known as:

1/2" Size Cable, Coaxial Cable, Low Loss Cable, Riser Low Loss Cable, HFAC Riser Cable, Riser Dielectric Cable.

Applications:

• In-building Wireless
• Distributed Antenna System (DAS)

Benefits:

• Highly efficient signal transfer
• Outperforms the industry requirements for low PIM
• Rugged and durable jacket slows the spread of flame without releasing toxic smoke
• Suitable for vertical cable runs in a shaft or that penetrate more than one floor within a building
• Shortens installation time and expenses

Features:

• Low attenuation
• Low passive intermodulation
• Non-halogenated, fire retardant, black polyethylene Jacket
• ETL Certified CMR(UL 1666)/CATVR (UL 1581)
• Full range of easy to install connectors and an automated cable prep tool

Specifications:
