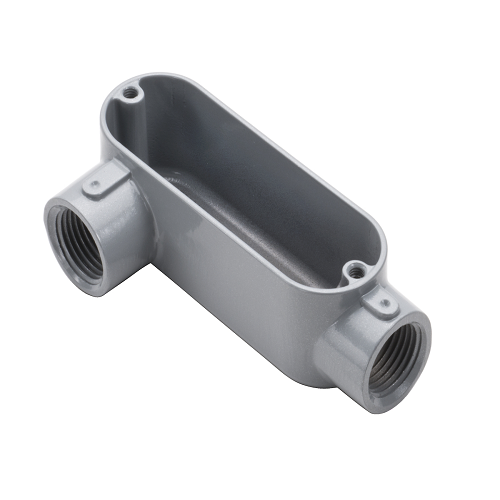

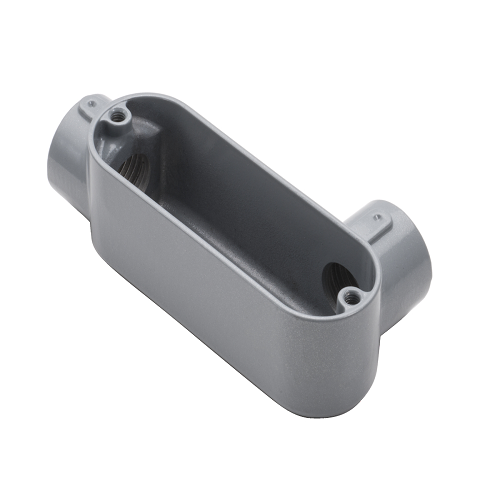

1/2 Rigid LR Type Conduit Bodies LR1 (Pack of 55)

Product Information

Specification

About :

The "1/2" in 1/2 Rigid LR typically indicates the diameter of the conduit, which is half an inch. This size is suitable for certain types of wire or cable installations where larger conduits are not necessary. Rigid LR conduits are usually made of metal, such as galvanized steel or aluminum, offering durability and protection against physical damage. This makes them suitable for both indoor and outdoor applications, including areas exposed to harsh environmental conditions. The "LR" in the name stands for Long Radius. This means that the bend in the conduit elbow is gradual, as opposed to a short radius elbow which has a sharper bend. Long radius elbows are used where the wire needs to be pulled through the conduit over a longer curve, which minimizes the risk of damaging the wire insulation. Rigid LR conduits usually comply with specific industry standards such as those set by the National Electrical Code (NEC) in the United States. Compliance ensures safety and reliability in electrical installations.

Also known as:

1/2 Inch Rigid Conduit Elbow, Long Radius Half-Inch Elbow, 45-Degree Rigid Elbow, Half-Inch Rigid Elbow.

Specification:

Material : Zinc Plated Gray Iron
Height : 1.37 Inch
Width : 2.03 Inch
UPC : 751338212404

Features:

• Threaded LR type
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations
