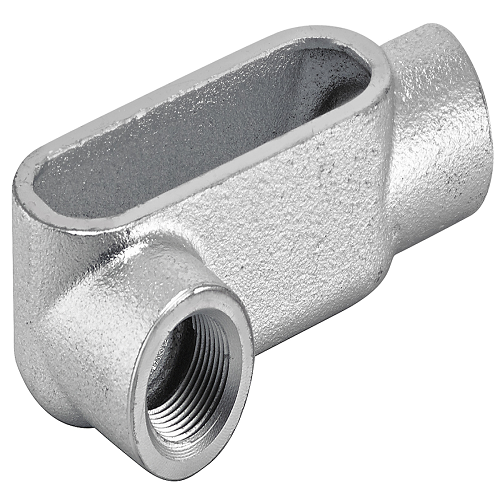

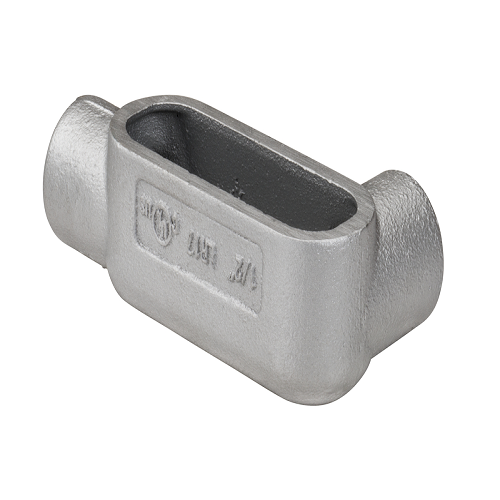

1/2" Form 7 Gray Iron LR Type Conduit Bodies LR1G7 (Pack of 15)

Product Information

Specification

About :

The 1/2" measurement refers to the nominal size of the conduit body. This size is compatible with 1/2-inch conduit pipes, a standard size in many electrical installations. As indicated by the name, it is made of gray iron, which is known for its good tensile strength and durability. Gray iron is a common material for electrical fittings due to its robustness and resistance to wear. This designation implies the shape and functionality of the conduit body. 'LR' typically denotes a 90-degree elbow shape, which is used to change the direction of the conduit run at a right angle. This type is useful in tight spaces or where wires need to be redirected. This refers to a specific standard or specification that the conduit body meets. FM 7 standards usually define the design, construction, and performance criteria for conduit fittings to ensure quality and safety.

Also known as:

Threaded LR Conduit Body, 1/2" FM 7, 1/2-Inch Left-Right Conduit Body, Electrical Conduit Fitting, 1/2" LR Type, Gray Iron LR-Type Conduit Box, 1/2 Inch.

Specification:

Material : Malleable Iron
Height : 2.30 Inch
Width : 1.40 inch
UPC : 751338869455

Features:

• Threaded LR type with cover and gasket
• NPT tapered hubs
• Suitable for use in concrete
• Hot dip galvanized finish provides superior protection against severe environmental factors
