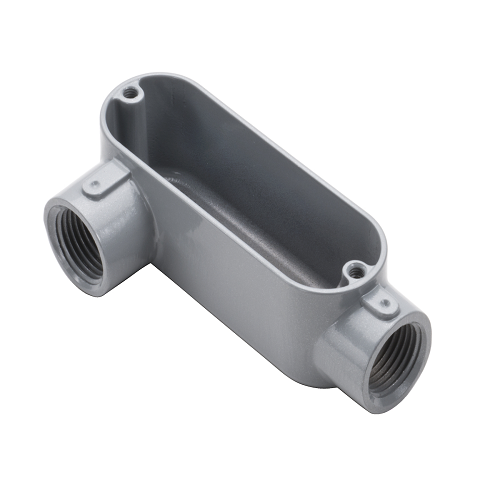

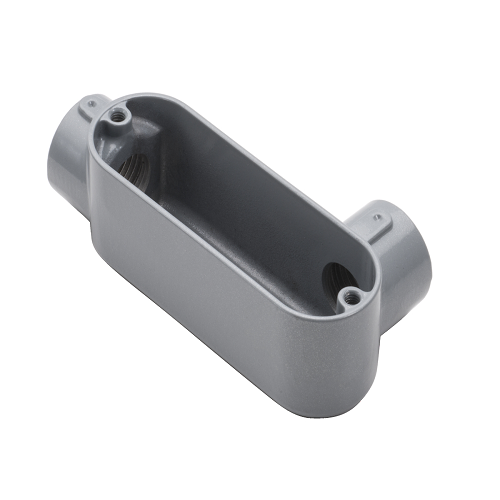

1/2" EMT And Rigid LL Type Conduit Bodies LL1SS (Pack of 45)

Product Information

Specification

About :

It is designed to fit 1/2-inch Electrical Metallic Tubing (EMT) or RIGID conduit. This size is fairly standard for a range of residential and light commercial electrical applications. Typically, these conduit bodies are made from durable materials like galvanized steel, aluminum, or PVC. This ensures they can withstand environmental factors and physical stress. The "LL" designation refers to the shape of the conduit body. An LL-type conduit body has two openings on the left-hand side, forming an L shape. This design is useful for making 90-degree bends in conduit runs or for providing easy access to conductors for maintenance and future system changes. Many LL conduit bodies come with a cover and gasket. The cover provides protection and easy access to the wires inside, while the gasket ensures a tight, weatherproof seal, which is essential in outdoor or damp environments.

Also known as:

1/2" Metallic Conduit, 1/2" Electrical Conduit, Thin-Wall Conduit, 1/2" Aluminum Conduit, Rigid Metal Conduit.

Specification:

Material : Powder Coated Die-Cast Copper Aluminum
Height : 1.31 Inch
Width : 2.06 inch
UPC : 751338210424

Features:

• Threaded LL type
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations use with threaded rigid metal conduit only
