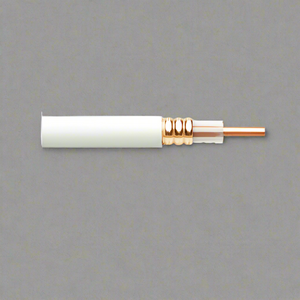

1/2" CMP 50 Ohm Low Loss PVDF Flexible Corrogated Copper Coaxial Cable White LHF-12DPV

1/2" CMP 50 Ohm Low Loss PVDF Flexible Corrogated Copper Coaxial Cable White LHF-12DPV
Roll over image to Zoom
1/2" CMP 50 Ohm Low Loss PVDF Flexible Corrogated Copper Coaxial Cable White LHF-12DPV
Roll over image to Zoom
1/2" CMP 50 Ohm Low Loss PVDF Flexible Corrogated Copper Coaxial Cable White LHF-12DPV
SKU: LHF-12DPV

Availability: In stock

Price:
Regular price
$2.45
Sale price
$2.45
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Quantity must be 1 or more

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Product Information

Specification

About:

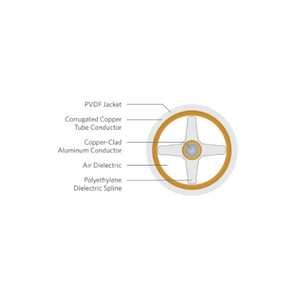

LHF-12DP is a 1⁄2 inch, low loss 50 Ohm Plenum Rated RF coaxial cable that is installed in the plenum space of a building as part of an in-building DAS system to eliminate dead zones and spotty coverage. Designed with a copper clad aluminum center conductor, air dielectric center structure, helically corrugated copper tube outer conductor, and Plenum Rated outer jacket, the LHF-12DP is a high performing cable with low loss attenuation.

Also Know As:

Plenum Cable, Low Loss Dielectric Cable, Feeder Cable, Dielectric Feeder Cable, Flexible Coaxial Cable, Coax Cable, 50 Ohm Coax Cable.

Applications:

• In-building Wireless
• Distributed Antenna System (DAS)

Benefits:

Highly efficient signal transfer
Outperforms the industry requirements for low PIM
Flame retardant and low smoke; blends with background for optimal building aesthetics
Safe to use throughout a building, including air carrying plenum space
Shortens installation time and expenses

Features:

Lowest attenuation
Low passive intermodulation
High-quality, white PVDF jacket
ETL Certified CMP (UL 444)
Full range of easy to install connectors and an automated cable prep tool

Specification:

Cable Size 1/2"
Inner Conductor Material Copper-clad aluminum
Outer Conductor Material Corrugated copper tube
Dielectric Material Polyethylene
Nominal Diameter Inner Conductor: 0.19"
Dielectric: 0.47"
Outer Conductor: 0.54"
Jacket: 0.58"
Minimum Bend Radius 5.91"
Characteristic
Impedance
50 ± 2 Ohms
Typical Return Loss 19 dB
Jacket Material White, PVDF
Weight lbs/kft 139
Part Number LHF-12DPV
