1/2-13 Beam Clamp Jaw Opening MBC-1213XL (Pack of 20)

Product Information

Specification

Also Know As :

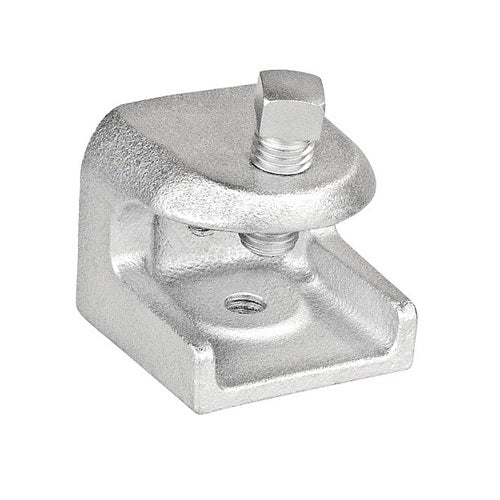

Malleable Iron Beam Clamp W/ 31/32" Jaw Opening & 1/2-13 Holes. This part Number MBC-1213XL.

About :

MALL BEAM CLMP 1/2-13 XL. Malleable iron is chosen for its excellent strength and flexibility compared to other types of iron. This material can endure significant stress and deformation without fracturing, making it ideal for heavy-duty applications. The 31/32" jaw opening is slightly less than 1 inch. This size is designed to fit standard-sized beams used in many construction projects. It's suitable for clamping onto beams securely without damaging them. The designation 1/2-13 refers to the size and threading of the holes. It means that the holes are designed for bolts or screws with a diameter of 1/2 inch and a thread count of 13 threads per inch. Installation is typically straightforward, but it's important to ensure that the clamp is used within its rated load capacity and is properly secured to maintain safety. Incorrect use or overloading can lead to structural failures and safety hazards.

Specification :

Height - 0.56 inch
Width - 0.44 inch
Material - Zinc Plated Iron
UPC - 785592991140
Part Number - MBC-1213XL

Features :

• Tapped holes on side and bottom

• Zinc plated malleable iron

• UL Listed

• Jaw Opening: 31/32"

• Hole Thread: 1/2"-13

• Static Load: 1700

• UL, CUL
