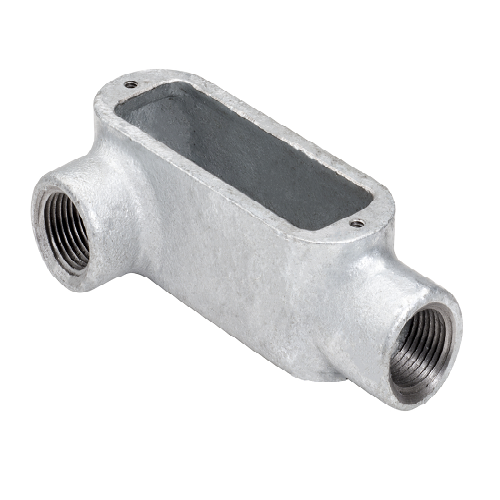

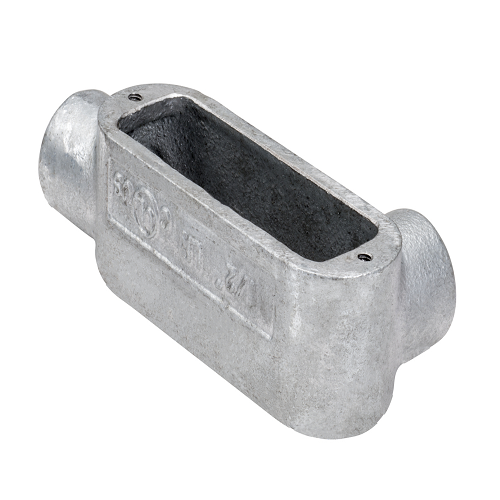

1-1/4" Rigid Conduit Bodies LR Malleable Iron HDG LR4MHDG (Pack of 5)

Product Information

Specification

About :

The conduit body should be made of malleable iron, offering robust strength and durability. The malleable iron should be of high quality to ensure it can withstand mechanical stress. The HDG process involves coating the iron with a layer of zinc to protect against corrosion. This is especially important in environments where the conduit might be exposed to moisture or chemicals. The LR (Left-Right) configuration implies that the conduit body has openings on opposite sides, facilitating easy wire pulling and splicing. The design should ensure smooth internal surfaces to prevent damage to wires.  It should come with a solid cover and gasket to ensure a weather-tight seal. This is critical to protect the electrical wires from environmental factors. The size of 1-1/4 inches refers to the internal diameter of the conduit. The walls should be thick enough to provide strength while allowing enough internal space for the wires.

Also known as:

Non-Metallic Rigid LR Elbow, Zinc-Plated Steel Rigid LR Elbow, Adjustable Angle Rigid LR Elbow, Aluminum Rigid LR Elbow.

Specification:

Material : Malleable Iron
Height : 2.6 Inch
Width : 3.41 inch
UPC : 751338866362

Features:

• Combination LR type
• NPT tapered hubs
• Suitable for use in concrete
• Hot dip galvanized finish provides superior protection against severe environmental factors
