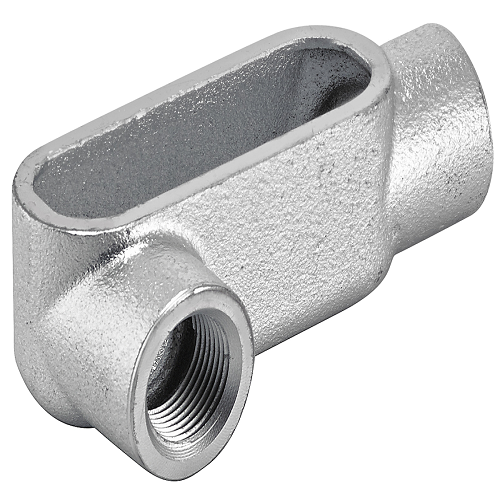

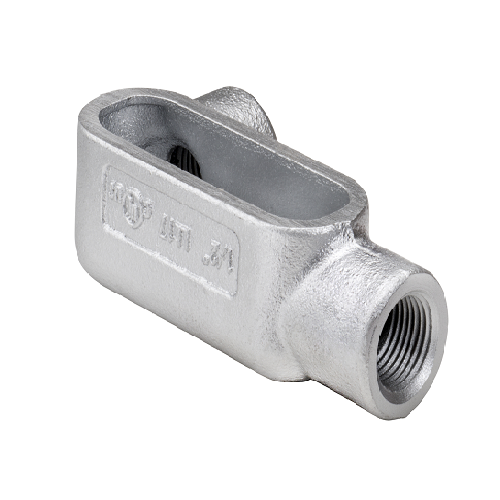

1-1/4" Form 7 Gray Iron LL Type Conduit Bodies LL4G7 (Pack of 5)

Product Information

Specification

About :

The "1-1/4" in its name refers to the diameter of the conduit it can accommodate, which is 1-1/4 inches. It is made from gray iron, which is a common type of cast iron. This material is known for its durability and resistance to deformation under load.  The 'LL' designation indicates the shape and function of the conduit body. 'LL' type conduit bodies have two openings on the same side and are generally used to allow easy access to the conductors for pulling, splicing, and maintenance. This refers to the specific standard or specification the conduit body adheres to. FM 7 typically indicates that it meets certain requirements for durability, performance, and safety standards. industry standards such as the National Electrical Code (NEC) and are UL listed or certified.

Also known as:

1-1/4 inch LL-shaped conduit body, Type FM 7 grey cast iron conduit body, Electrical conduit fitting, 1-1/4" LL, grey iron.

Specification:

Material : Zinc Plated Gray Iron
Height : 3.1 Inch
Width : 2.3 inch
UPC : 751338869288

Features:

• Threaded LL type
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
