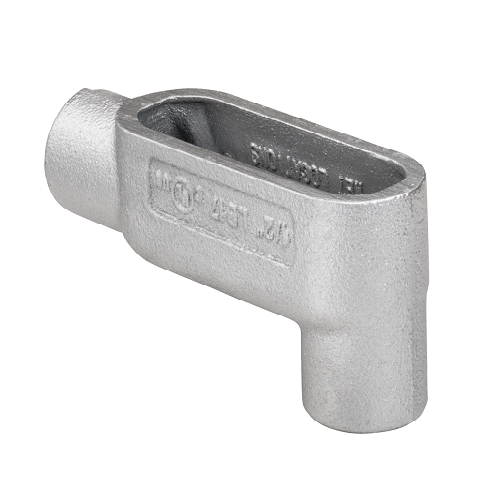

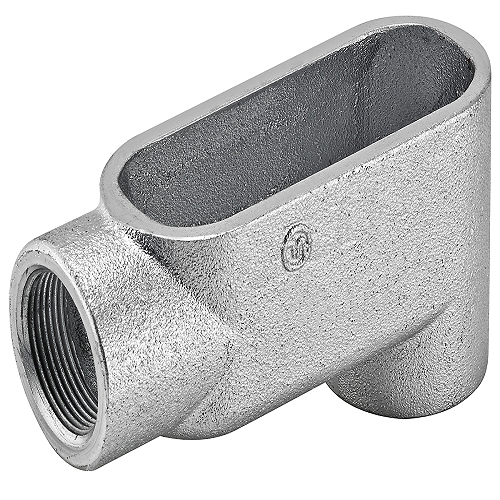

1-1/4" Form 7 Gray Iron LB Type Conduit Bodies LB4G7 (Pack of 5)

Product Information

Specification

About :

The 1-1/4" refers to the nominal size, indicating it is suitable for conduits of that diameter. It is made of gray iron, which is a common material for such fittings due to its durability, strength, and corrosion resistance. This designation means it's an "elbow" shaped body, often used where a 90-degree change in the direction of the conduit run is needed. The LB type allows for pulling wires with a sharp turn. It often comes with a cover and gasket, which are essential for protecting the wires from environmental elements and ensuring a tight seal. Usually, such conduit bodies are UL listed and meet certain standards for safety and performance.

Also known as:

1-1/4 Inch LB Conduit Body, 1-1/4 Inch Threaded LB Conduit Body, Cast Iron LB-Style Electrical Conduit Body.

Specification:

Material : Zinc Plated Gray Iron Material
Height : 2.2 Inch
width : 3.2 inch
UPC : 751338869080

Features:

• Threaded LB type
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
