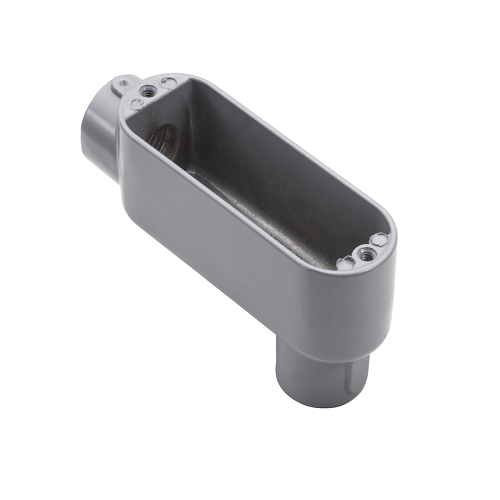

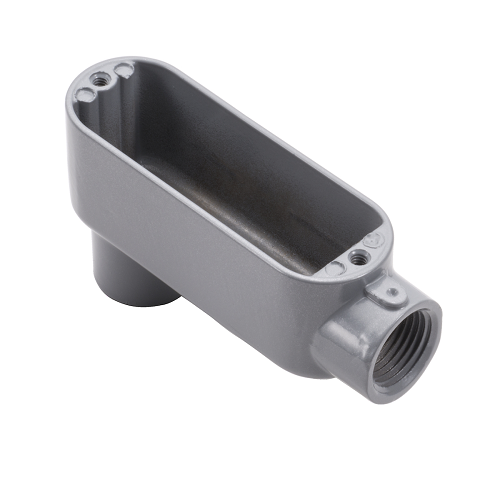

1-1/4" EMT And Rigid LB Type Conduit Bodies LB4SS (Pack of 14)

Product Information

Specification

About :

EMT:

The "1-1/4" in its name indicates that it is designed to fit 1-1/4 inch Electrical Metallic Tubing (EMT) or Rigid conduit. This size is a standard in the industry for certain types of electrical installations. Made of lightweight, thin-walled steel. It's easy to bend, cut, and join. The surface is usually galvanized to resist corrosion. Uses set-screw or compression type fittings. Doesn't require threading. Easier and quicker to install, can be bent on-site with a standard conduit bender. Provides good protection against mechanical damage but less effective in damp or wet locations unless specifically coated for such conditions.

RIGID:

Typically made of thicker steel or aluminum. RIGID conduits are more robust and offer better protection but are harder to work with due to their weight and rigidity. Often used in industrial or outdoor settings where greater protection is needed. It's suitable for areas exposed to severe physical damage or in hazardous locations. Typically requires threaded connections. Fittings are more robust to maintain a tighter seal against environmental factors.

Also known as:

1-1/4 inch Electrical Conduit, 1-1/4 inch Industrial-grade Conduit, 1-1/4 inch Rigid Electrical Conduit, 1-1/4 inch Galvanized Steel Conduit.

Specification:

Material : Powder Coated Die-Cast Copper Aluminum
Height : 3.5 Inch
width : 2.4 inch
UPC : 751338208728

Features:

• Threaded LB type
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations use with threaded rigid metal conduit only
