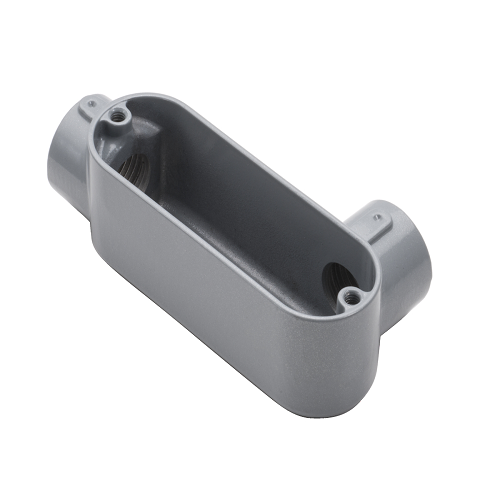

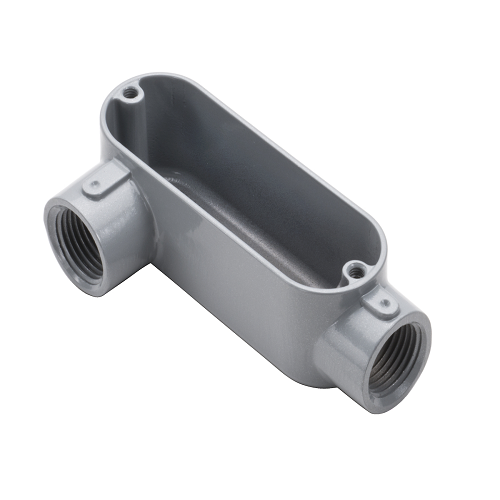

1-1/2 Rigid LR Conduit Bodies LR5 (Pack of 15)

Product Information

Specification

About :

Rigid LR conduit bodies are commonly made of materials like aluminum, stainless steel, or PVC. The choice depends on the environment where it will be used. The "1-1/2" in its name refers to the diameter of the conduit, measured in inches. It is suitable for conduits with an external diameter of 1-1/2 inches.  The 'LR' in its name indicates the shape and function of the conduit body. 'LR' usually stands for "Left-Right," referring to the direction in which the conduit path changes when using this body. This type allows for a 90-degree change in direction. They often come with a cover and gasket, which are necessary for creating a weatherproof or waterproof seal, especially important in outdoor or damp locations.

Also known as:

90-Degree Elbows, Adjustable Elbow Fittings, Long Radius Elbows, Conduit Bodies Type LR, Flexible Conduit Fittings.

Specification:

Material :Zinc Plated Gray Iron
Height : 3.335 Inch
Width : 3.81 inch
UPC : 751338212800

Features:

• Threaded LR type
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations
