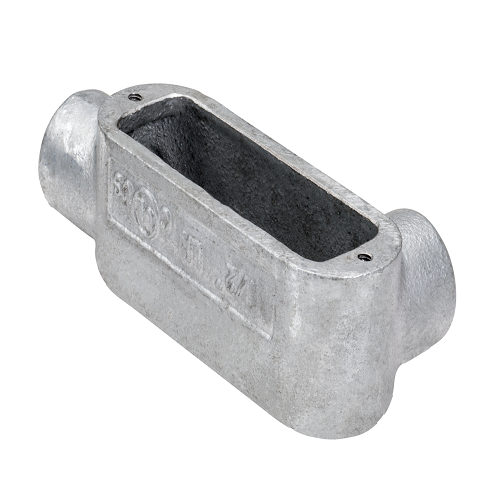

1-1/2" Rigid Conduit Bodies LR Malleable Iron LR5M (Pack of 7)

Product Information

Specification

About :


It's typically made of aluminum, which offers good corrosion resistance and is suitable for use in various environments, including those with moisture. The conduit body is for 1-1/2 inch RIGID conduit systems. This size is important for compatibility with the conduit and fittings you're using. The conduit body likely has threaded openings, ensuring a secure and tight connection with the conduit. It should include a cover and a gasket. The gasket ensures a tight seal for protecting wires from moisture and other environmental factors. The "LR" designation indicates a left-right configuration. This is important for the direction in which the conduit will run and is useful for changing the direction of the conduit run in a right or left-hand direction. The construction should be robust to withstand physical impacts and environmental conditions.


Also known as:

Electrical Conduit Elbow Body, 1-1/2" Rigid, Type LR, 1-1/2 Inch Rigid Metal Conduit Body, LR-Style Rigid Conduit Body.


Specification:

Material : Zinc Plated Aluminum Malleable Iron
Height : 2.67 Inch
Width : 3.48 inch
Weight : 0.69 LBS
UPC : 751338213807


Features:

• Combination LR type
• NPT tapered hubs
• Suitable for use in concrete
• Hot dip galvanized finish provides superior protection against severe environmental factors
