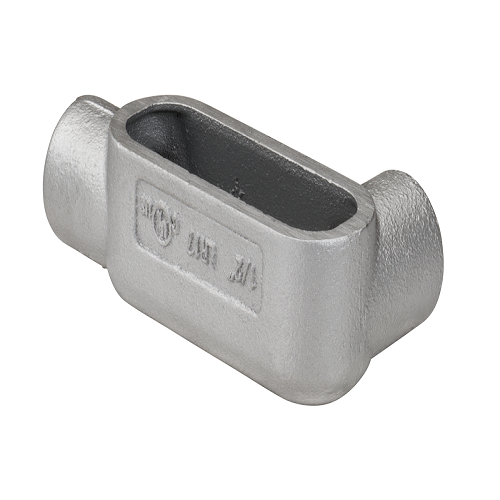

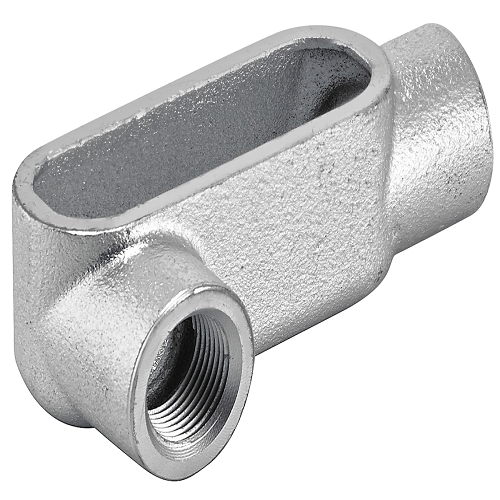

1-1/2" Form 7 Gray Iron LL Type Conduit Bodies LL5G7 (Pack of 4)

Product Information

Specification

About :

The "1-1/2" in the name indicates the size, meaning it is designed to fit conduits that are 1-1/2 inches in diameter. The "LL" designation refers to the shape of the conduit body, which in this case likely means it has two openings on the left side when facing the cover.  Gray iron, also known as grey cast iron, is a type of cast iron characterized by its graphite content, which gives it a gray appearance on fracture surfaces. This material is known for its good machinability, excellent thermal conductivity, and vibration damping properties.  This likely refers to a standard or specification related to the manufacturing or quality of the conduit body. It could be a reference to a specific standard set by a regulatory or standards body.  This likely refers to a standard or specification related to the manufacturing or quality of the conduit body. It could be a reference to a specific standard set by a regulatory or standards body.

Also known as:

1-1/2 Inch Cast Gray Iron FM7, 1-1/2" Gray Iron Conduit Fitting Material, 1-1/2 Inch Gray Iron, FM7 Standard for Industrial Use.

Specification:

Material : Zinc Plated Gray Iron
Height : 3.4 Inch
Width : 2.6 inch
UPC : 751338869295

Features:

• Threaded LL type
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
