0.162 16-14 AWG Pan-Term Male Disconnect Nylon Barrel Insulated DNF14-250M-C (Pack of 100)

Product Information

Specification

About:

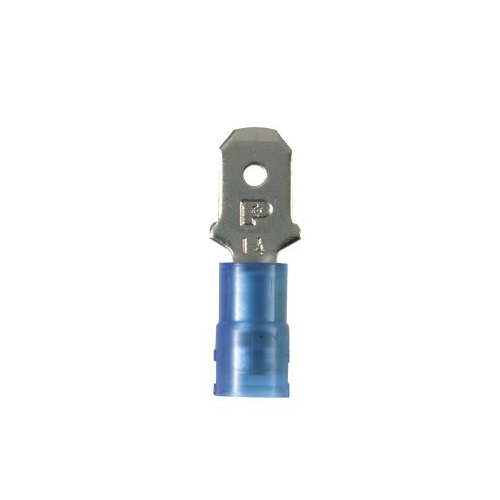

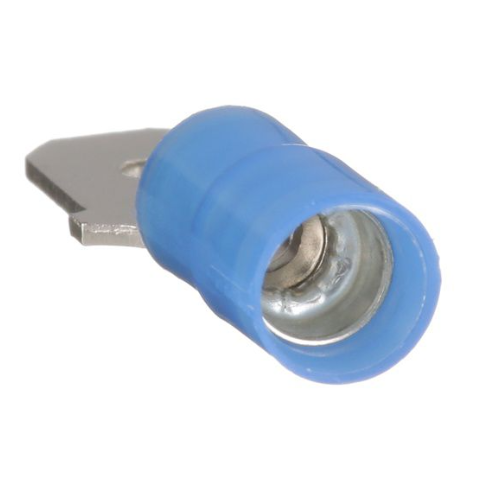

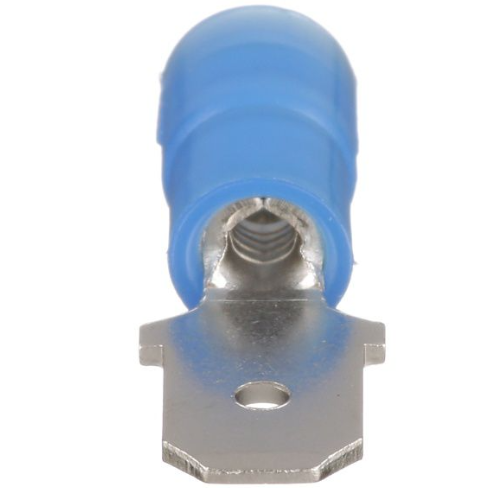

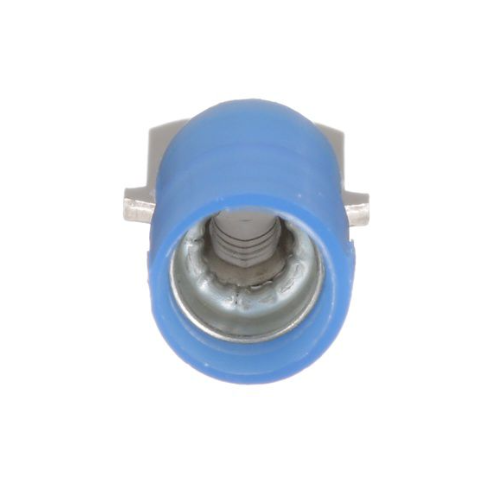

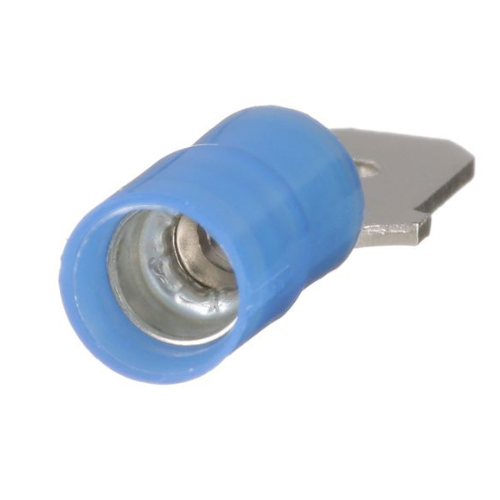

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.90" (22.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Also Known As:

• DNF14 Series Male Terminal
• 16-14 AWG Slip-On Male Terminal Connector
• DNF14-250M-C Nylon-Insulated Male Quick Disconnect

Common Applications:

• Industrial machinery and control panel connections

• Automotive audio, lighting, and electronic systems

• Household electrical systems and devices

• Scenarios necessitating a swift, insulated connection for 16-14 AWG wires

• Electronic circuit board and device assembly

Standards:

• UL Listed or Recognized

• RoHS Compliant

• CSA Certified

Construction:

• Terminal Body: Constructed from brass or copper, known for their superior electrical conductivity and anti-corrosion properties.

• Insulation: Utilizes high-quality nylon, providing defense against heat, chemicals, and mechanical abrasion.

• Plating: Coated with tin to augment conductivity and furnish resistance against oxidation.

Features:

• Streamlined Crimping: Meticulously fashioned to enable seamless and firm crimping using standard tools.

• High-Quality Insulation: The nylon insulation not only enhances aesthetics but also ensures safety, warding off potential short circuits.

• Color-coded: Adopts the standard blue hue typical for 16-14 AWG wire gauges, aiding users in selecting the appropriate terminal size.

• Sturdy Connection: Precision-engineered to guarantee a secure connection when coupled with its female counterpart.
