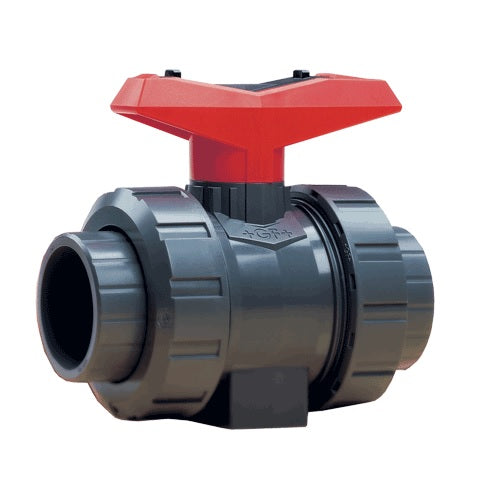

50mm Type 546 Butt-Fusion Ends True FPM O-rings PVDF Union Ball Valve 175.546.276

Product Information

Specification

Ball Type	Standard
Connection Type	Butt-Fusion
Operator	Handle
O-Ring Material	FPM
Seat Material	PTFE
Series	Type 546
Size	50mm
Type of product	True Union Ball Valve
Ball Material	PVDF
Body Material	PVDF
Part Number	175.546.276



50mm Type 546 Butt-Fusion Ends True FPM O-rings PVDF Union Ball Valve 175.546.276

Description

Ball valve Type 546 is an innovative product developed by GF Piping Systems; it comprises extensive experience and the latest technology. The ball valve Type 546, successor of the ball valve Type 346, is the fully developed result of GF Piping Systems' 40 years experience in plastic. The ball valve Type 546 is part of a modular system that satisfies your requirements on operational reliability as well as those on eco-friendliness and cost-effectiveness.

Features

• True union design with PTFE seats
• Sizes ½-2" include threaded and socket end connectors
• 2 ½-4" socket or threaded end connectors available
• NSF-certified
• Specially designed stem with break point for safety
• Rated to 232 psi for socket and 150 psi for threaded version
• Adjustable seat carrier
• Integrated stainless steel inserts for mounting Options
• Control ball
• Vented ball for bleach applications
• Pneumatic and electric actuation
• Limit switches for both manual and actuated versions
• Polypropylene and PVDF versions
