1/2" Type 546 Socket/FPT Ends True EPDM O-rings PVC Union Ball Valve 151.546.342

Product Information

Specification

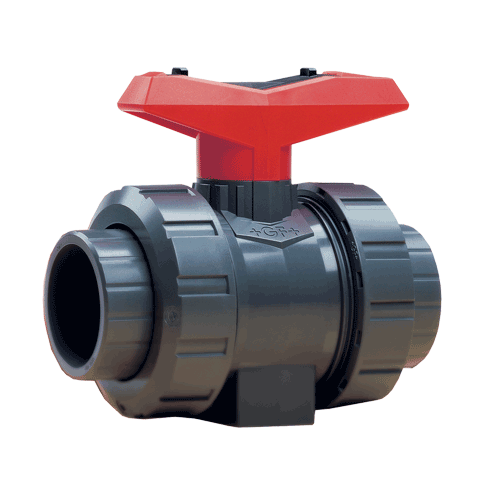

1/2" Type 546 Socket/FPT Ends True EPDM O-rings PVC Union Ball Valve

Description

Ball valve Type 546 is an innovative product developed by GF Piping Systems; it comprises extensive experience and the latest technology. The ball valve Type 546, successor of the ball valve Type 346, is the fully developed result of GF Piping Systems' 40 years of experience in plastic. The ball valve Type 546 is part of a modular system that satisfies your requirements on operational reliability as well as those on eco-friendliness and cost-effectiveness.

Features

• True union design with PTFE seats
• Sizes ½-2" include threaded and socket end connectors
• 2 ½-4" socket or threaded end connectors available
• NSF-certified
• Specially designed stem with a break point for safety
• Rated to 232 psi for the socket and 150 psi for the threaded version
• Adjustable seat carrier
• Integrated stainless steel inserts for mounting Options
• Control ball
• Vented ball for bleach applications
• Pneumatic and electric actuation
• Limit switches for both manual and actuated versions
• Polypropylene and PVDF versions
