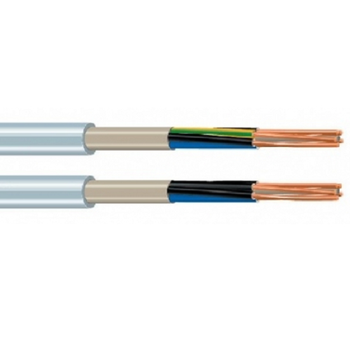

4 x 35 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable

4 x 35 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable

Allowable Ampacity for 4 x 35 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable: 100 Amps

About:

The description "4 x 35 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable" gives quite a bit of information about the cable's specifications and potential use cases.

Also Known As:

• NYM-J and NYM-O are European cable types designed for fixed installations.
• The "Eca" designation refers to the Euroclass fire performance of the cable according to European standard EN 50575:2014+A1:2016, indicating that it has a certain level of reaction to fire.

Application:

• Flexible halogen-free transformer/installation cable.
• Suitable for the power supply of systems that are sensitive to electromagnetic interference signals and where high demands are placed on fire safety.
• Can be installed under unfavorable conditions, such as damp areas.

Standards:

EN50575:2014+A1:2016

Construction:

• Conductor: Bare Copper Class 5 round
• Insulation: Vulcanized Polyethylene (XLPE)
• Veins: filled into a round whole
• Inner Jacket: n/a
• Braiding: Wrapped aluminum foil with tinned copper braid
• Outer Sheath: LSZH Polyolefin

Features:

• Voltage Rating: Suitable for voltage ratings of 300/500V.
• Fire Performance: Complies with Eca standards for reaction to fire.
• Solid Conductor: Generally offers a lower resistance path, making it ideal for higher current and longer distance runs in comparison to the same gauge of stranded conductor.
• Versatility: Can be used in a variety of environments (except where there is extreme mechanical stress).
• Compliance: Designed to meet European standards, ensuring safety and quality.

Specifications:

• Cores x Cross-Section: 4 x 35 mm²
• Outer Diameter approx. in: 28 mm
• Minimum Installation Temp: -5°C
• Maximum Conductor Temp: +70°C (temporarily overloadable up to 100°C)
• Operating Temp: Min. -40°C, Max +70°C
• Mantle color: Light Gray
• Select: VDE
• CPR classification: Eca
• Rated Voltage: 300/500V
• Test stress: 2 kV
• Weight kg/km: 1,886
